Steps

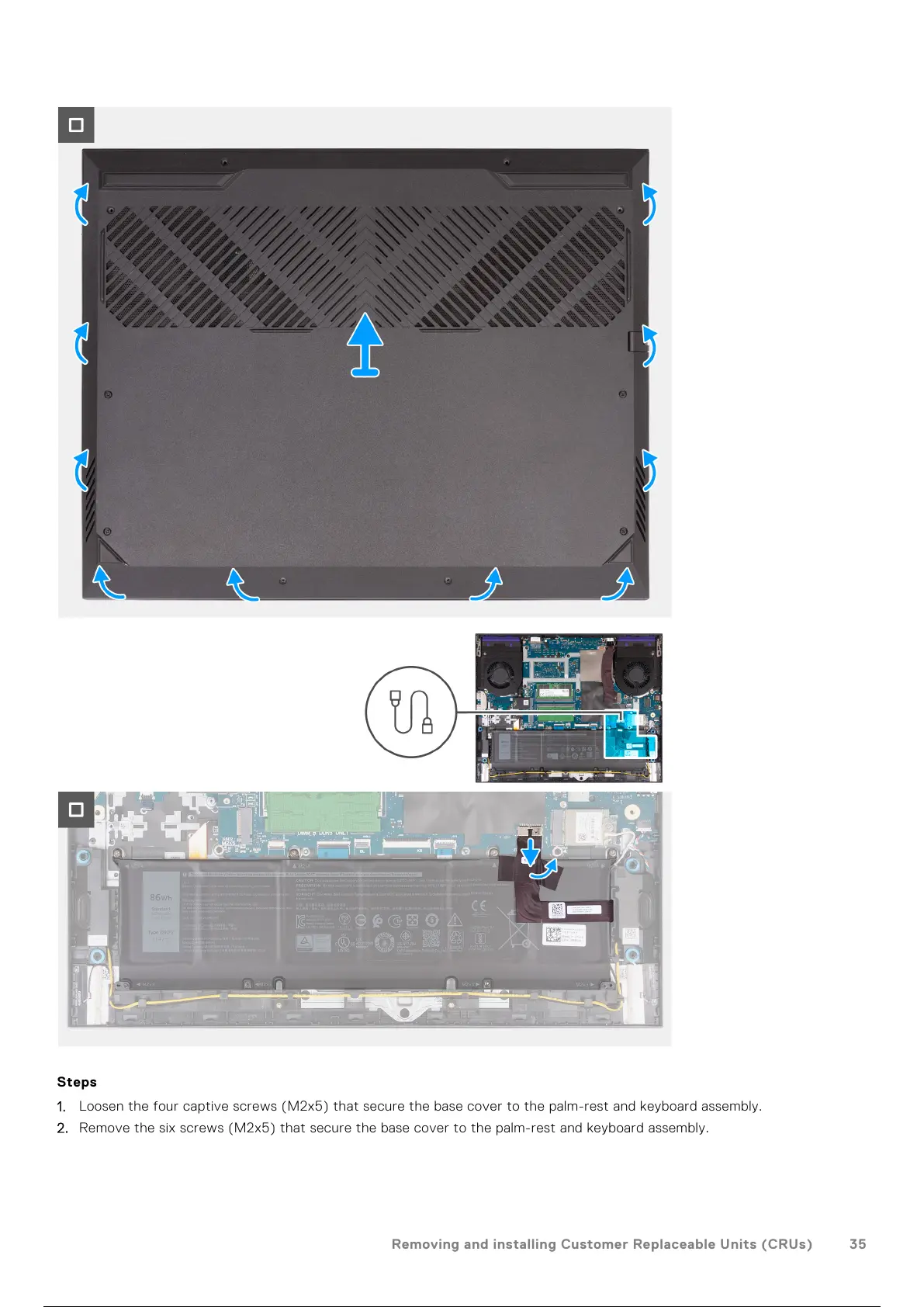

1. Loosen the four captive screws (M2x5) that secure the base cover to the palm-rest and keyboard assembly.

2. Remove the six screws (M2x5) that secure the base cover to the palm-rest and keyboard assembly.

Removing and installing Customer Replaceable Units (CRUs)
