Dell NOT22113 - Page 56

To Next Page

To Previous Page

Steps

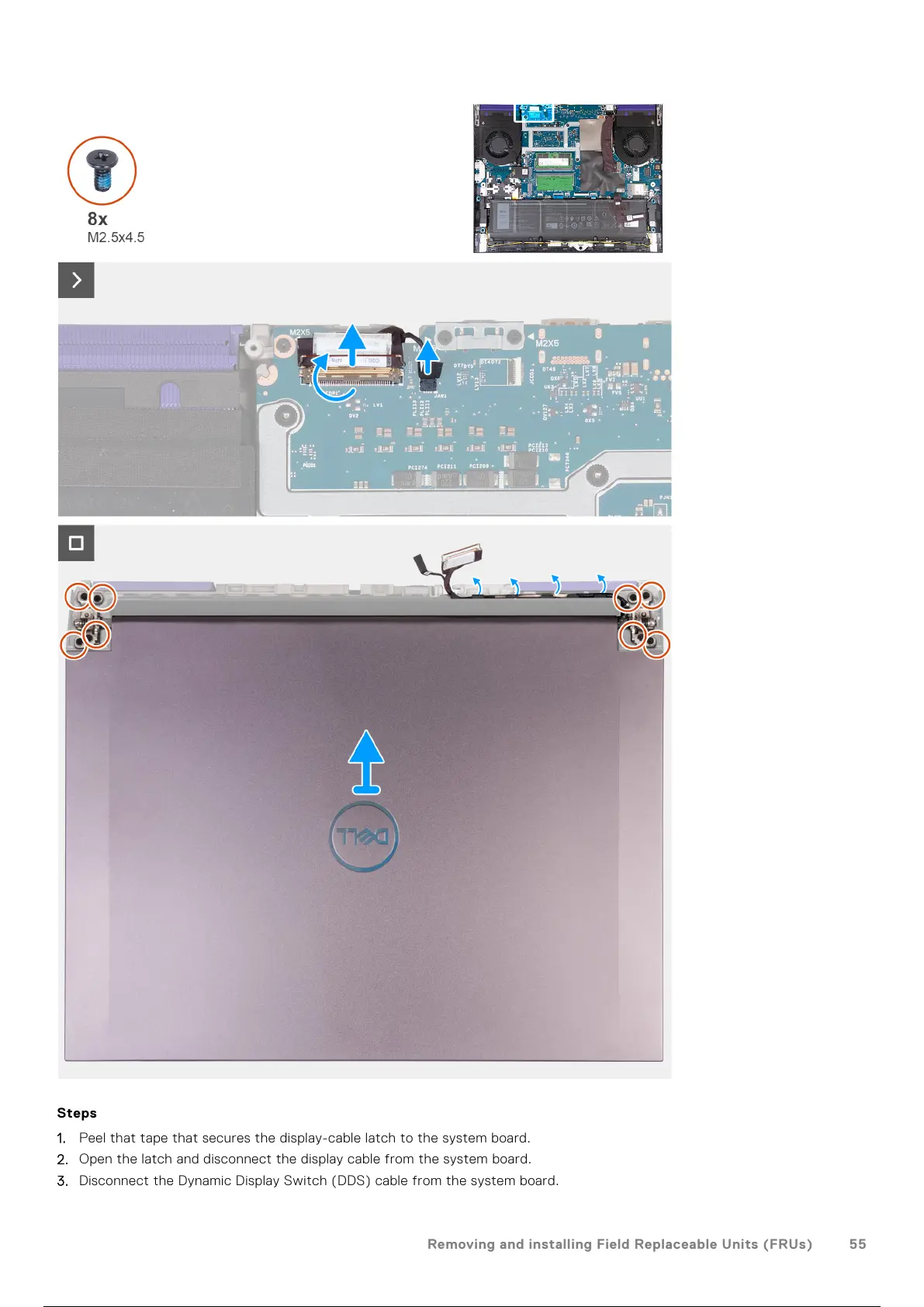

1. Peel that tape that secures the display-cable latch to the system board.

2. Open the latch and disconnect the display cable from the system board.

3. Disconnect the Dynamic Display Switch (DDS) cable from the system board.

Removing and installing Field Replaceable Units (FRUs)

56 / 101 55 / 99 56 / 101
