Steps

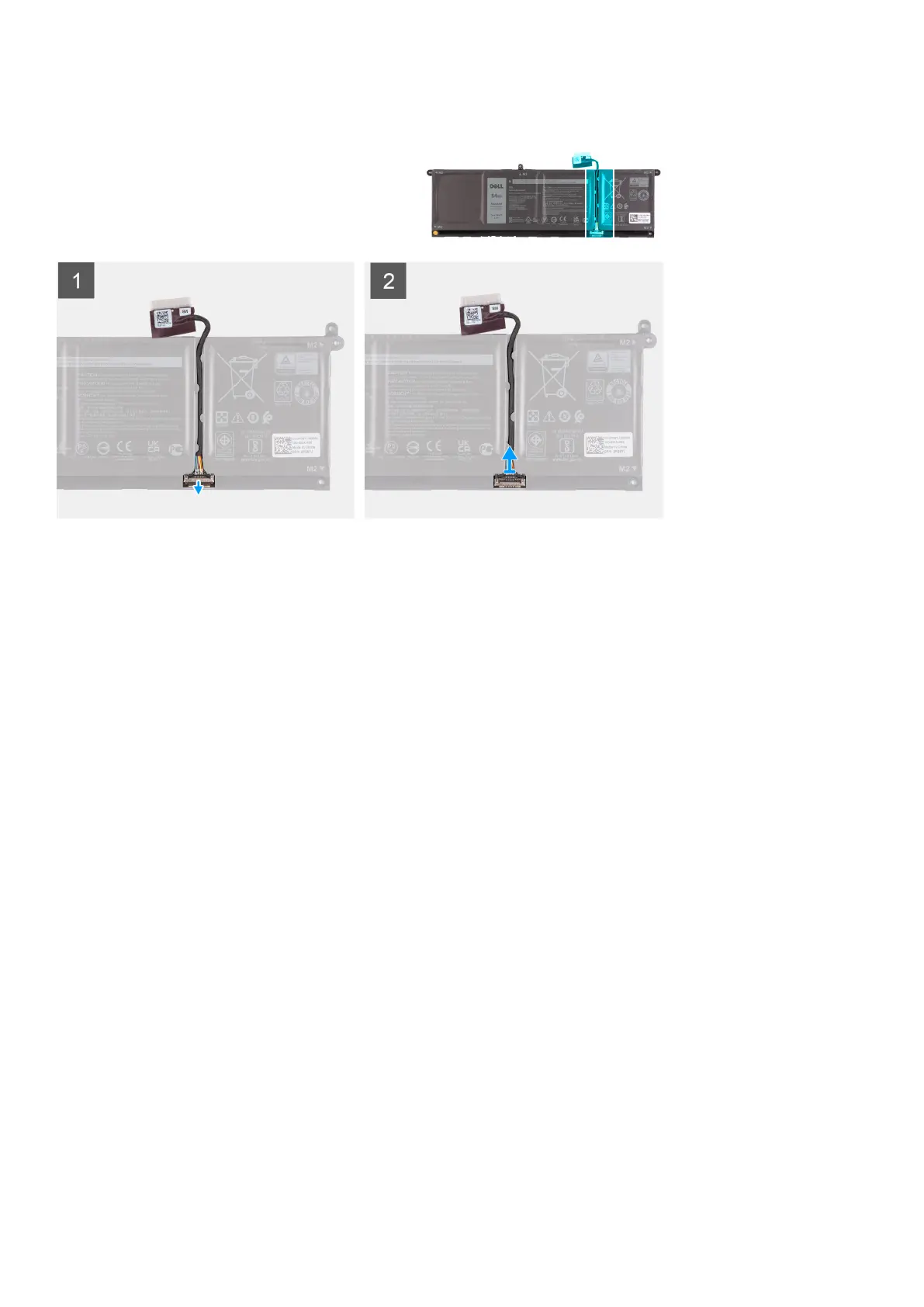

1. Lift the latch on the battery cable.
2. Disconnect the battery cable from the connector on the battery.
Connecting the battery cable
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
The following images indicate the location of the battery cable and provide a visual representation of the installation procedure.
30
Removing and installing components
