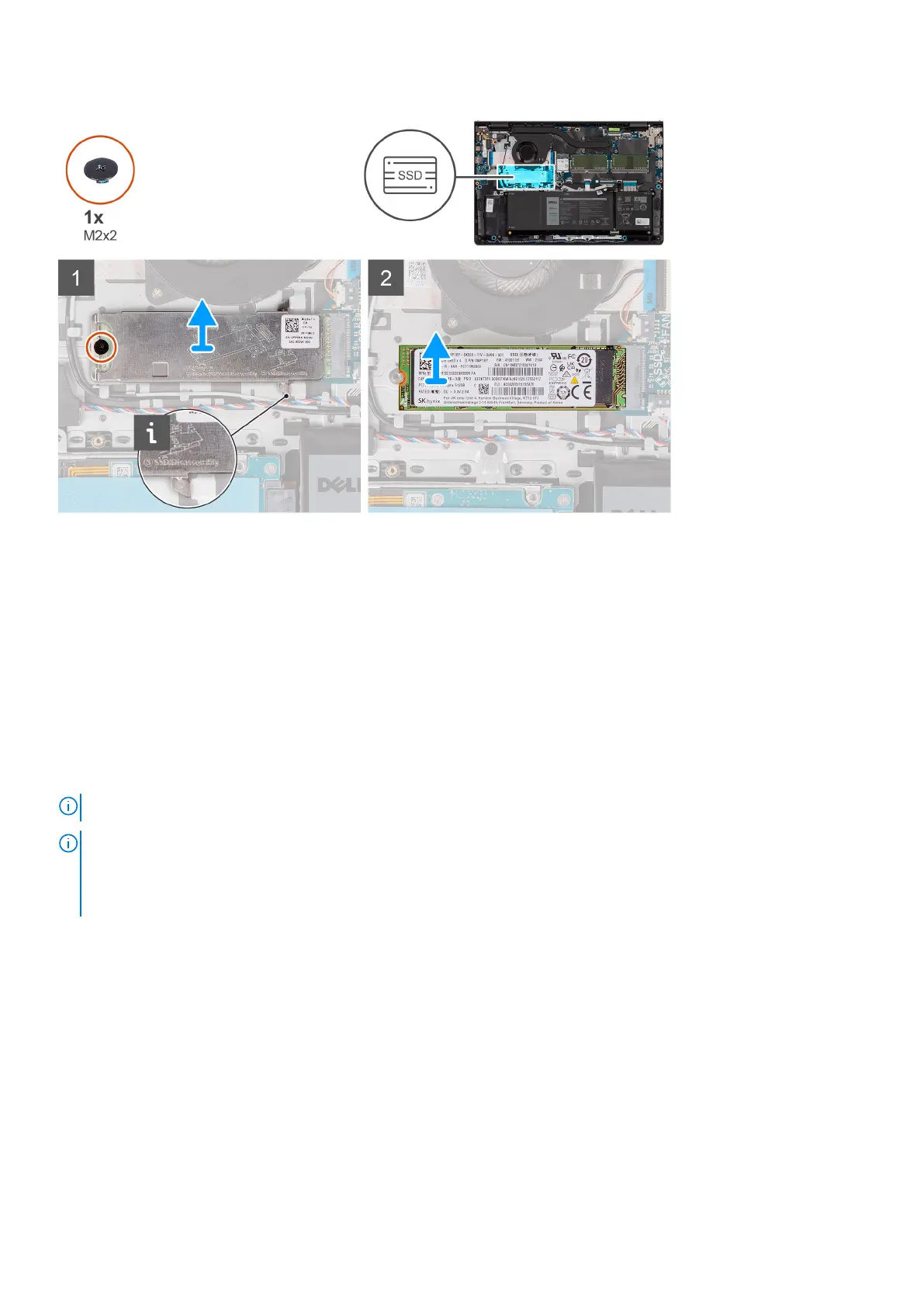

Steps
1. Remove the (M2x2) screw that secures the M.2 thermal plate to the palm-rest and keyboard assembly.
2. Slide and lift the solid state drive thermal plate off the solid state drive.
3. Slide and remove the M.2 2280 solid state drive from the M.2 card slot on the system board.
Installing the M.2 2280 solid state drive
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
NOTE: This procedure applies if you are installing a M.2 2280 solid state drive.
NOTE: The M.2 card installed on your computer depends on the configuration ordered. Supported card configurations on
the M.2 card slot:
● M.2 2230 solid state drive
● M.2 2280 solid state drive
The following images indicate the location of the M.2 2280 solid state drive and provide a visual representation of the
installation procedure.
34
Removing and installing components
