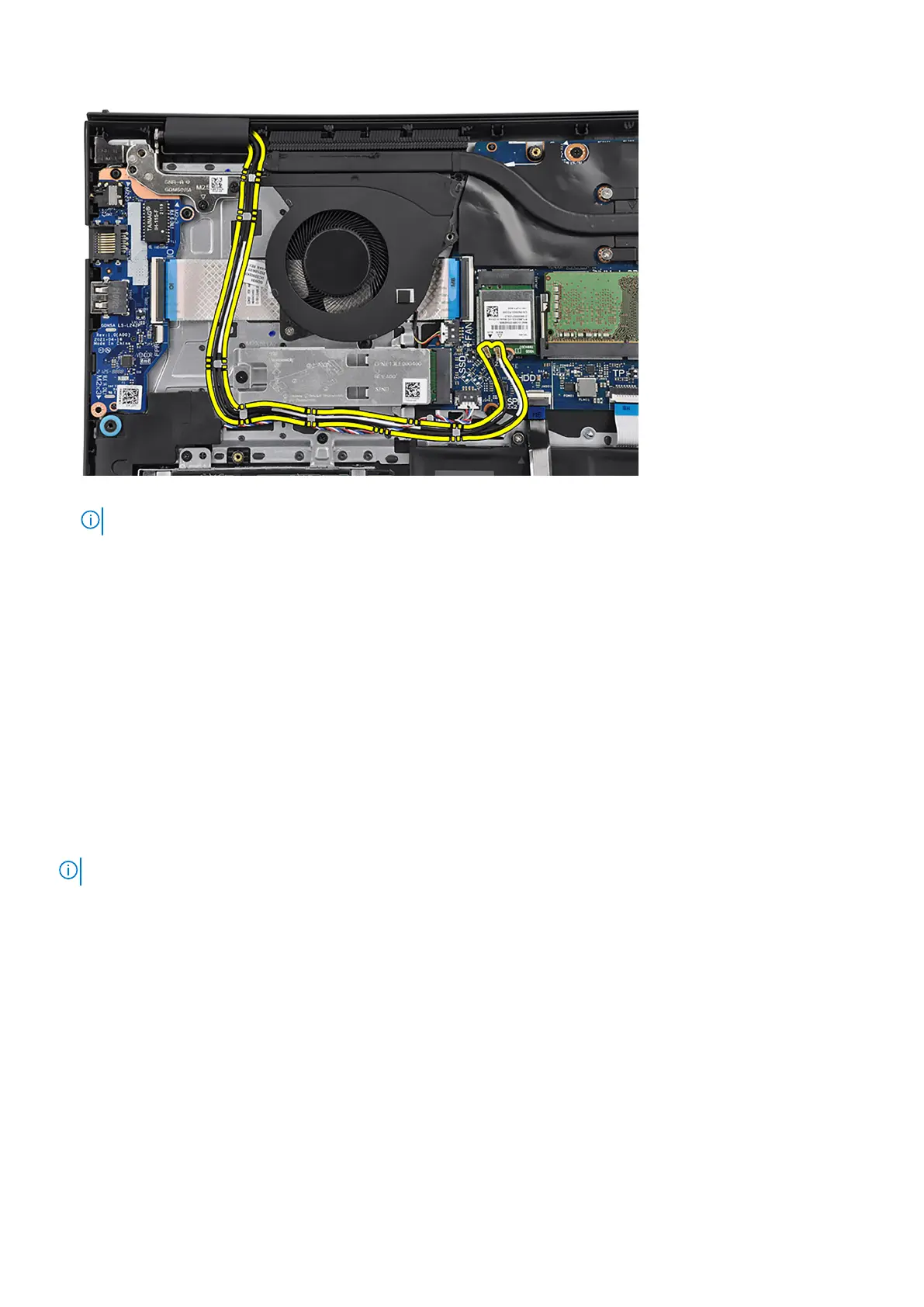

5. Route the speaker cable through the routing guides on the palm-rest and keyboard assembly.
NOTE: Ensure to route the speaker cable over the WLAN antenna cables.
6. Connect the display cable to the connector on the system board.
Next steps
1. Install the wireless card.
2. Install the base cover.
3. Install the SD card.
4. Follow the procedure in After working inside your computer.
Hinge caps
Removing the hinge caps
Prerequisites
NOTE: This procedure is applicable for systems with plastic chassis.
1. Follow the procedure in Before working inside your computer.
2. Remove the SD card.
3. Remove the base cover.
4. Remove the wireless card.
5. Remove the display assembly.
About this task
The following images indicate the location of the hinge caps and provide a visual representation of the installation procedure.
68
Removing and installing components
To Next Page
