Steps
1. Loosen the thumbscrew (6-32) that secures the side cover to the system.

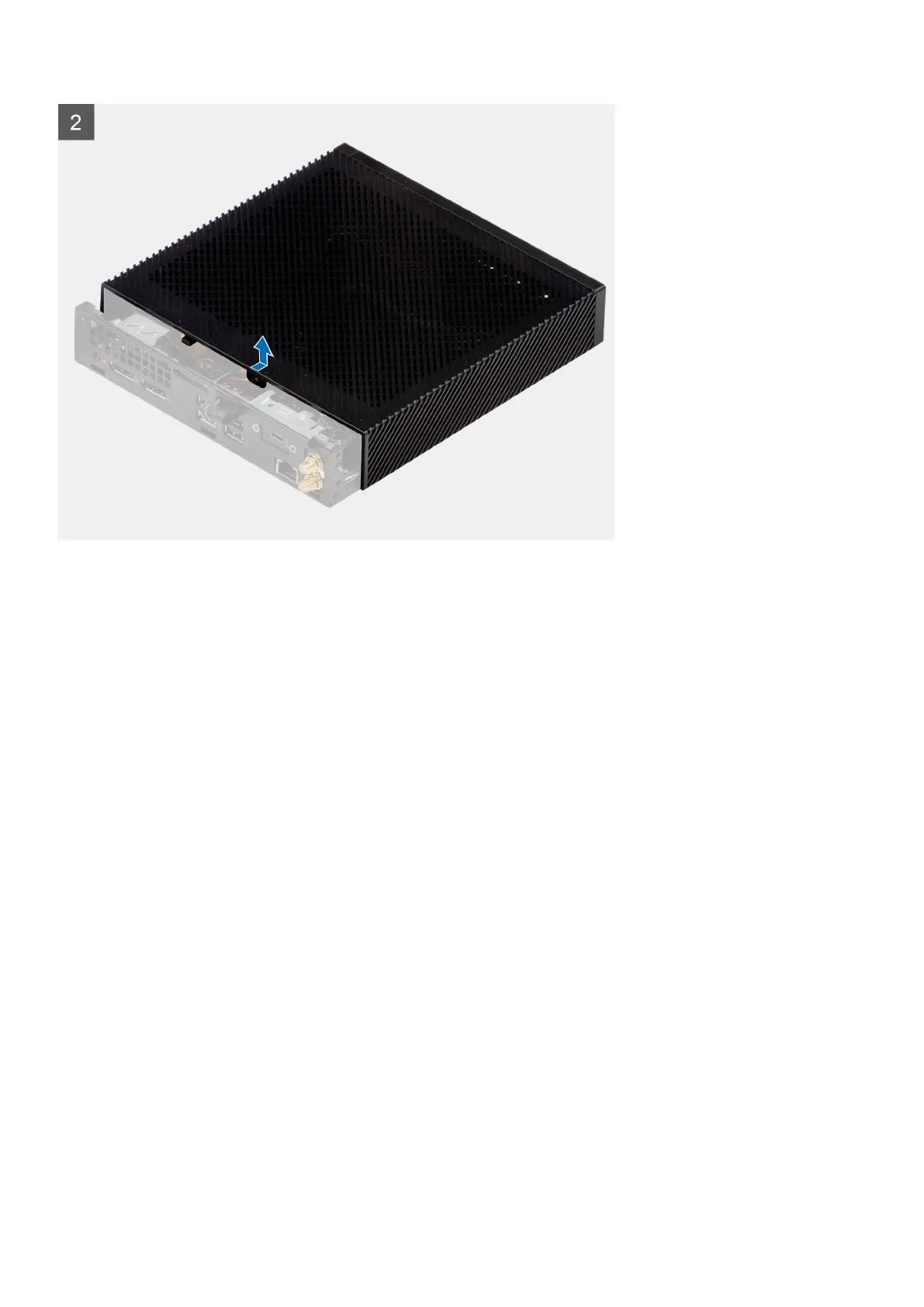

2. Slide the side cover towards the front of the system to disengage the tabs from the slots on the system.
3. Slide and remove the side cover from the system.
Installing the side cover
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the side cover and provide a visual representation of the installation procedure.
12
Removing and installing components
