About this task

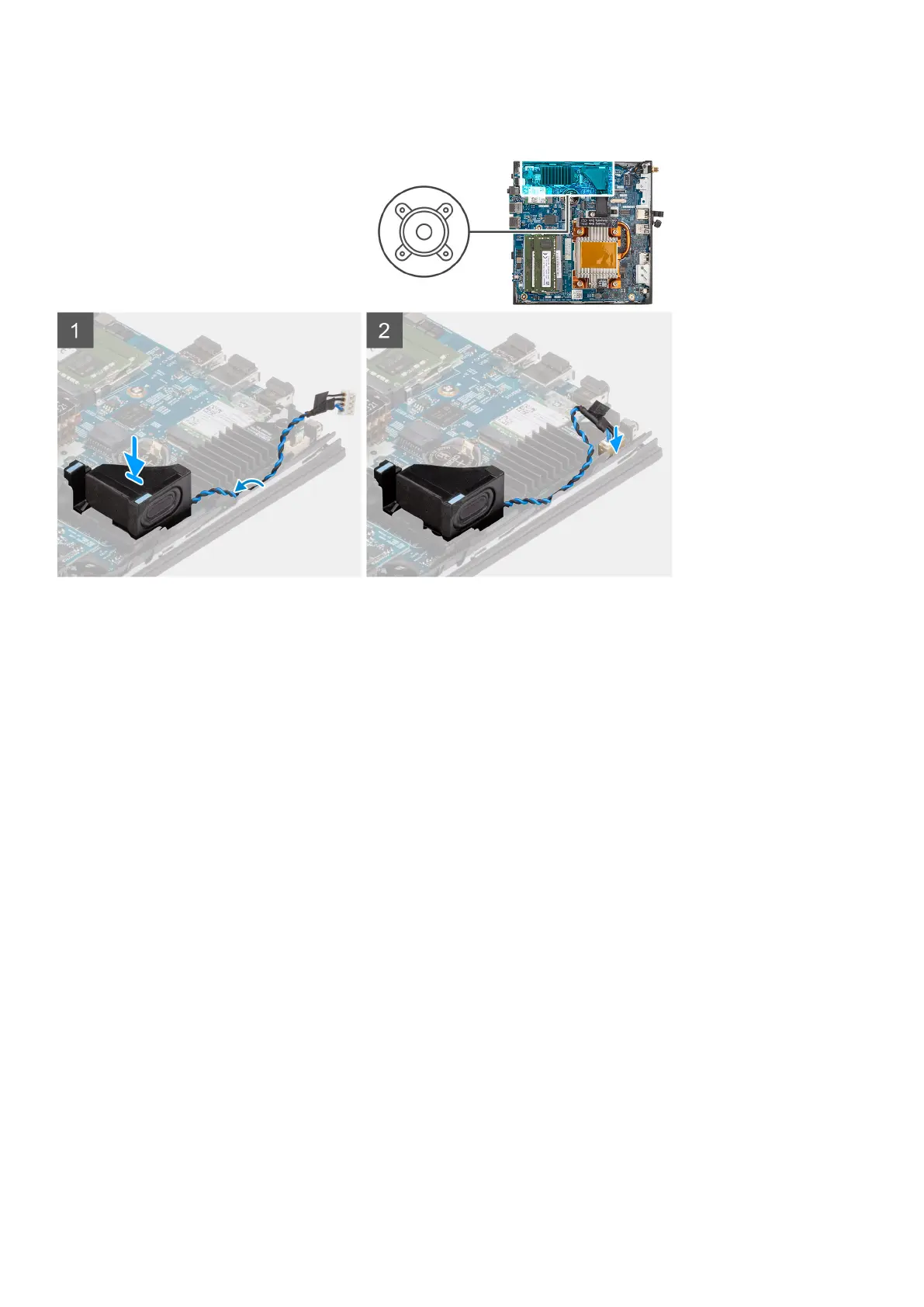

The following image indicates the location of the speaker and provides a visual representation of the installation procedure.
Steps
1. Align and insert the speaker into the slot on the system.
2. Press the speaker into the slot on the system until the release tab clicks.
3. Route the speaker cable through the routing guides between the speaker and the chassis.
4. Connect the speaker cable to the connector on the system board.
Next steps
1. Install the side cover.
2. Follow the procedure in after working inside your computer.
Solid-state drive assembly
Removing the solid-state drive assembly
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the side cover.
About this task
The following image indicates the location of the solid-state drive assembly and provides a visual representation of the removal
procedure.
Removing and installing components
15
