2. Slide the side cover towards the back of the system to engage the tabs with the slots on the system.
3. Tighten the thumbscrew (6-32) to secure the side cover to the system.
Next steps
1. Follow the procedure in after working inside your computer.
Speaker
Removing the speaker
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the side cover.
About this task

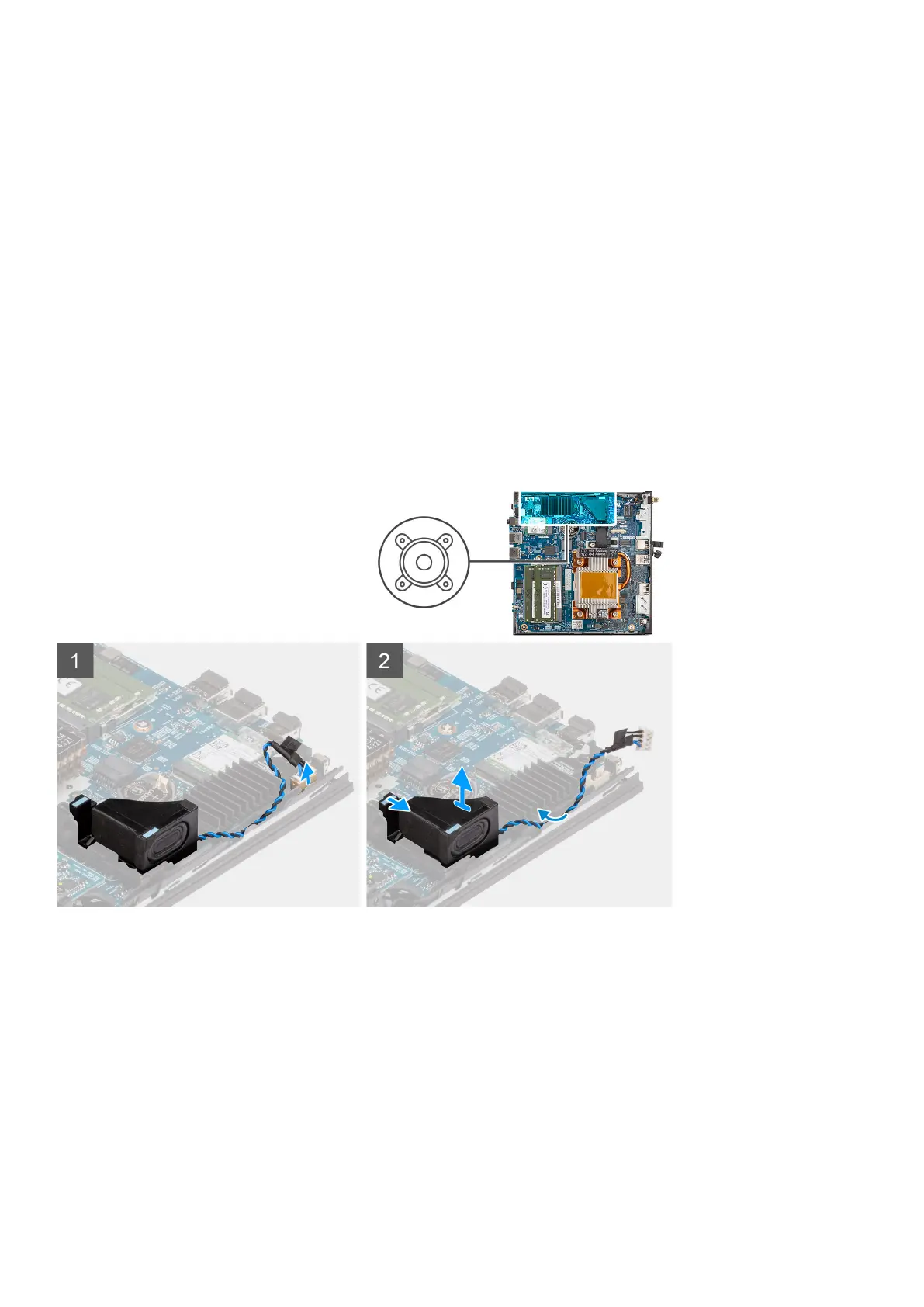

The following image indicates the location of the speaker and provides a visual representation of the removal procedure.
Steps
1. Disconnect the speaker cable from the connector on the system board.
2. Unroute the speaker cable from the routing guides between the speaker and the chassis.
3. Press the release tab to release the speaker from the slot on the system.
4. Lift and remove the speaker from the system.
Installing the speaker
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
