Steps
1. Unroute the black antenna-cable from the routing guides under the EMI shielding and from the cable clip.
2. Remove the screw (M3x3) that secures the internal antenna assembly to the system.
3. Lift and remove the internal antenna assembly from the system.
Installing the antenna (Location 1)
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

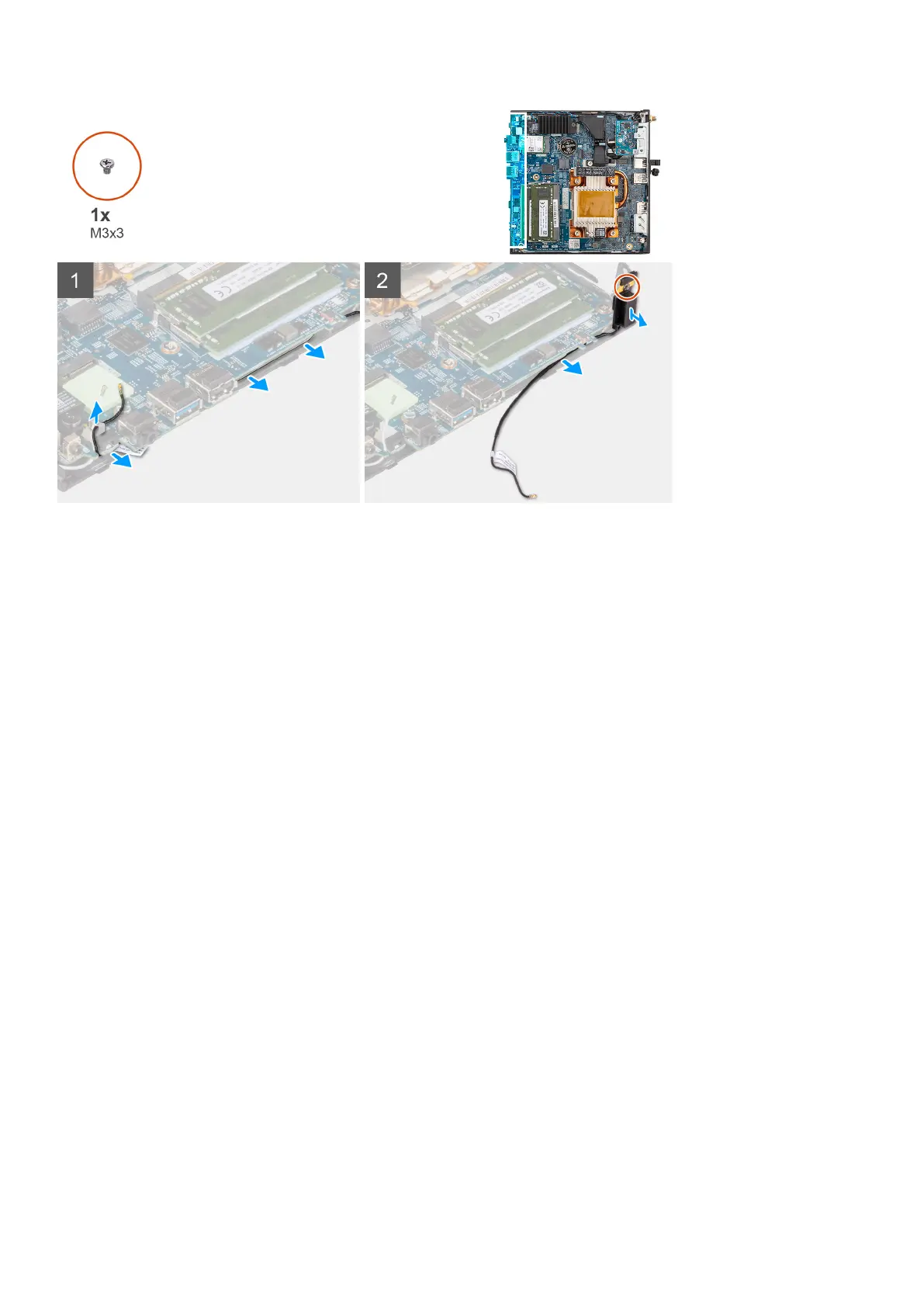

The following image indicates the location of an internal antenna and provides a visual representation of the removal procedure.
32
Removing and installing components
