Steps

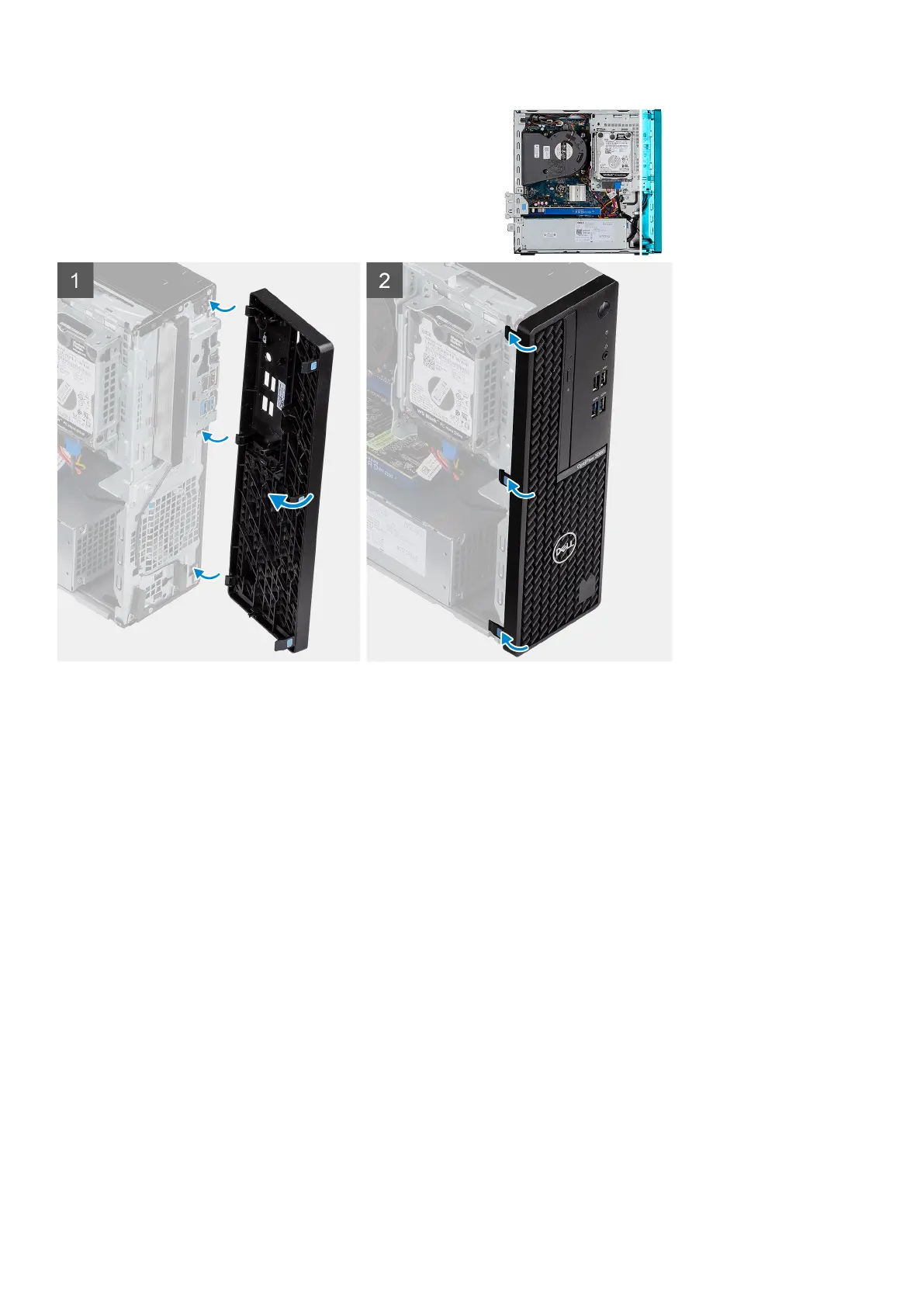

1. Position the bezel to align the tab holders with the slots on the system chassis.
2. Press the bezel until the tabs click into place.
Next steps
1. Install the side cover.
2. Follow the procedure in after working inside your computer.
2.5-inch hard-drive assembly
Removing the 2.5 in. hard drive assembly
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the side cover.
3. Remove the front bezel.
About this task
The following images indicate the location of the 2.5 in. hard drive and provide a visual representation of the removal procedure.
Field service information
23
