About this task

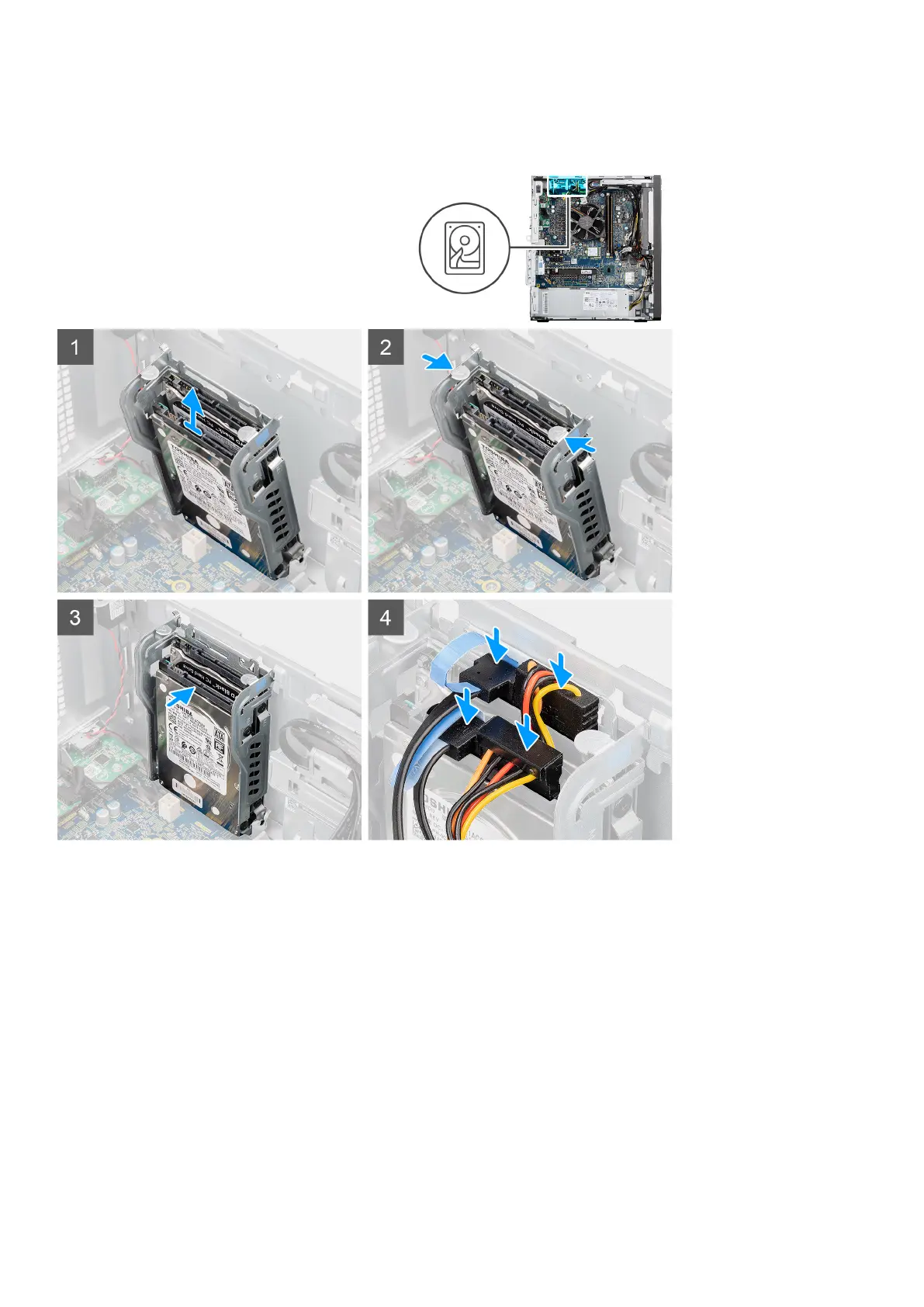

The following image indicates the location of the 2.5-inch hard-drive assembly and provides a visual representation of the
installation procedure.
Steps
1. Align the hard-drive assembly at an angle to the slot on the computer.
2. Press the release tabs on the hard-drive bracket and slightly align back to insert the hard-drive assembly to the slot on the
computer chassis.
3. Connect the hard-drive data and power cables to the connectors on the 2.5-inch hard-drive module.
Next steps
1. Install the fan duct.
2. Install the side cover.
3. Follow the procedure in after working inside your computer.
