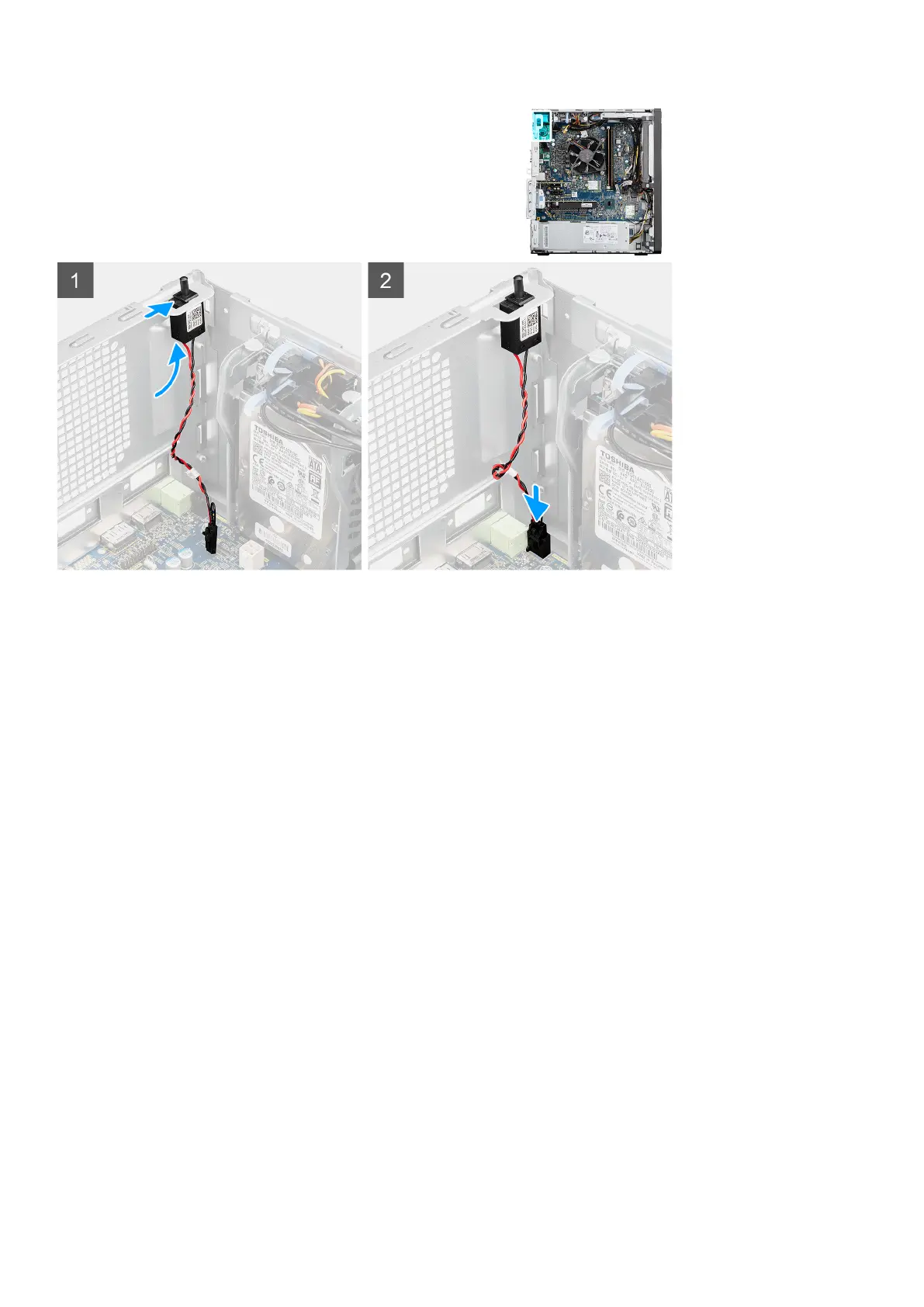

Steps
1. Insert the intrusion switch into its slot and slide the switch to secure it into the slot.
2. Connect the intruder cable to the connector on the system board.
Next steps
1. Install the fan duct.
2. Install the side cover.
3. Follow the procedure in after working inside your computer.
Optional I/O modules (HDMI/VGA/DP/Serial)
Removing optional I/O modules (HDMI/VGA/DP/Serial)
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the side cover.
3. Remove the front bezel.
4. Remove the fan duct.
About this task
The following images indicate the location of the optional I/O Modules and provides a visual representation of the removal
procedure.
54
Removing and installing components
