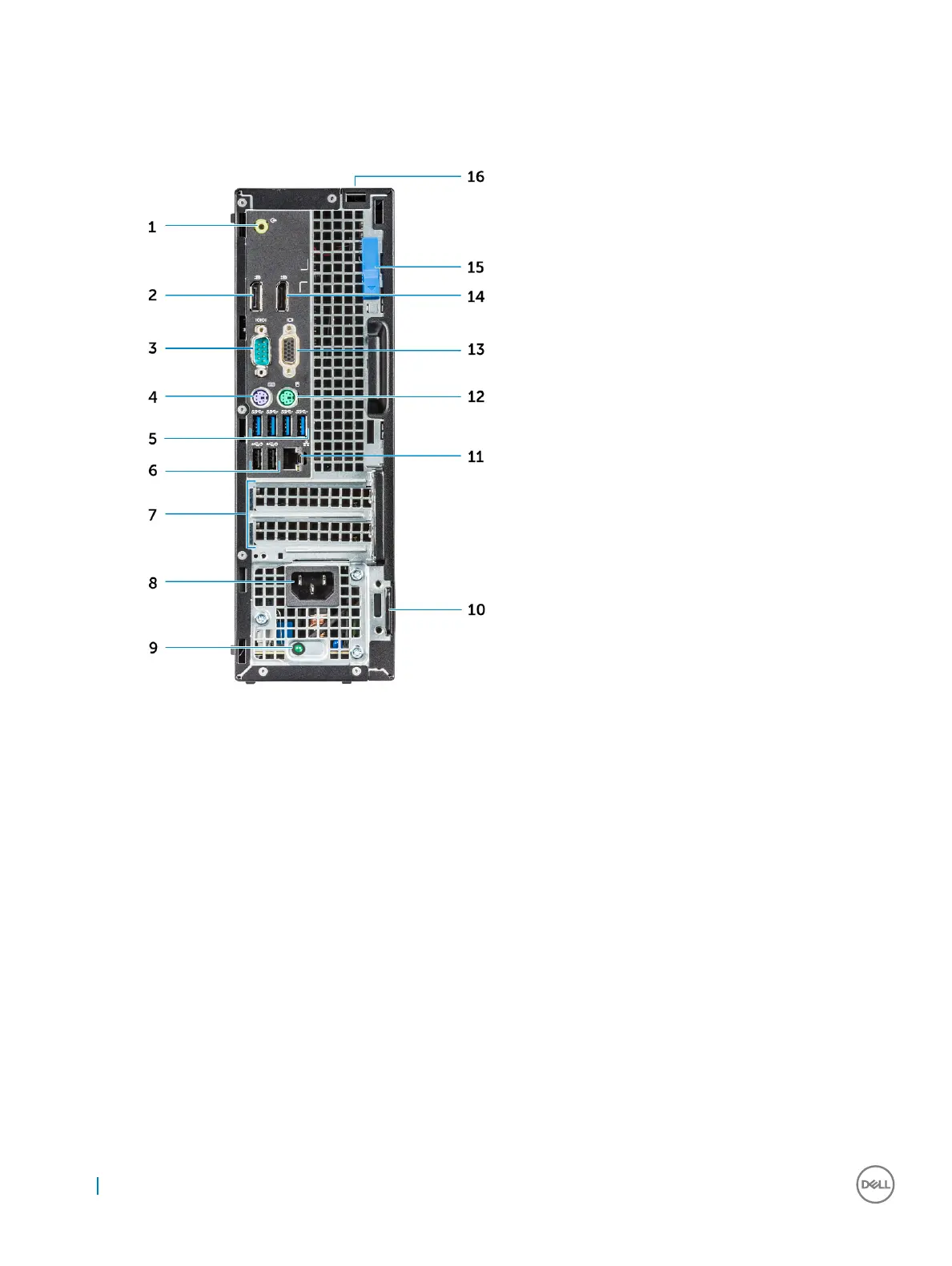

Back chassis view – Radeon R7 A series APU
1 Line-out port 2 DisplayPort
3 Serial port 4 PS/2 keyboard port
5 USB 3.0 ports 6 USB 2.0 ports (supports Smart Power On)
7 Expansion card slots 8 Power connector port
9 Power supply diagnostic light 10 Kensington security cable slot
11 Network port 12 PS/2 mouse port
13 DisplayPort 14 VGA connector port (optional)
15 Release latch 16 Cable cover lock slot
