SD card
Removing SD card reader
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a cover
b front bezel
c 2.5 inch hard drive assembly
d cooling shroud
e optical drive
f M.2 PCIe SSD

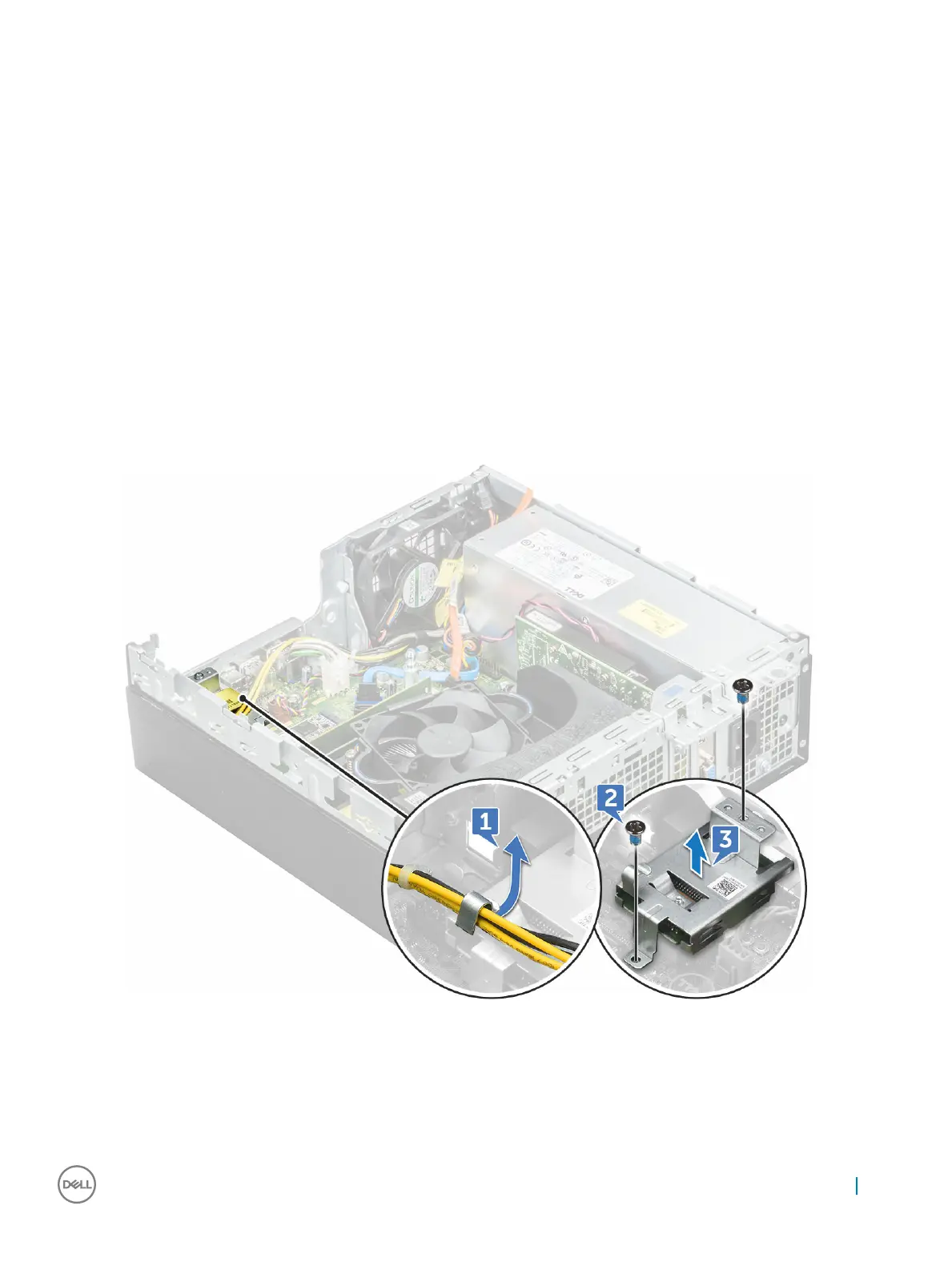

3 To remove the SD card reader:
a Release the power cables from the retention clips on the SD card reader enclosure [1].
b Remove the screws(6lbs) that secure the SD card reader [2].
c Lift the SD card reader away from the computer [3].
Installing SD card reader
1 Place the SD card in the slot on the system board.
2 Tighten the screw(6 lbs) to secure the SD card reader to the front panel door.
Removing and installing components
