d 2.5 inch hard drive assembly

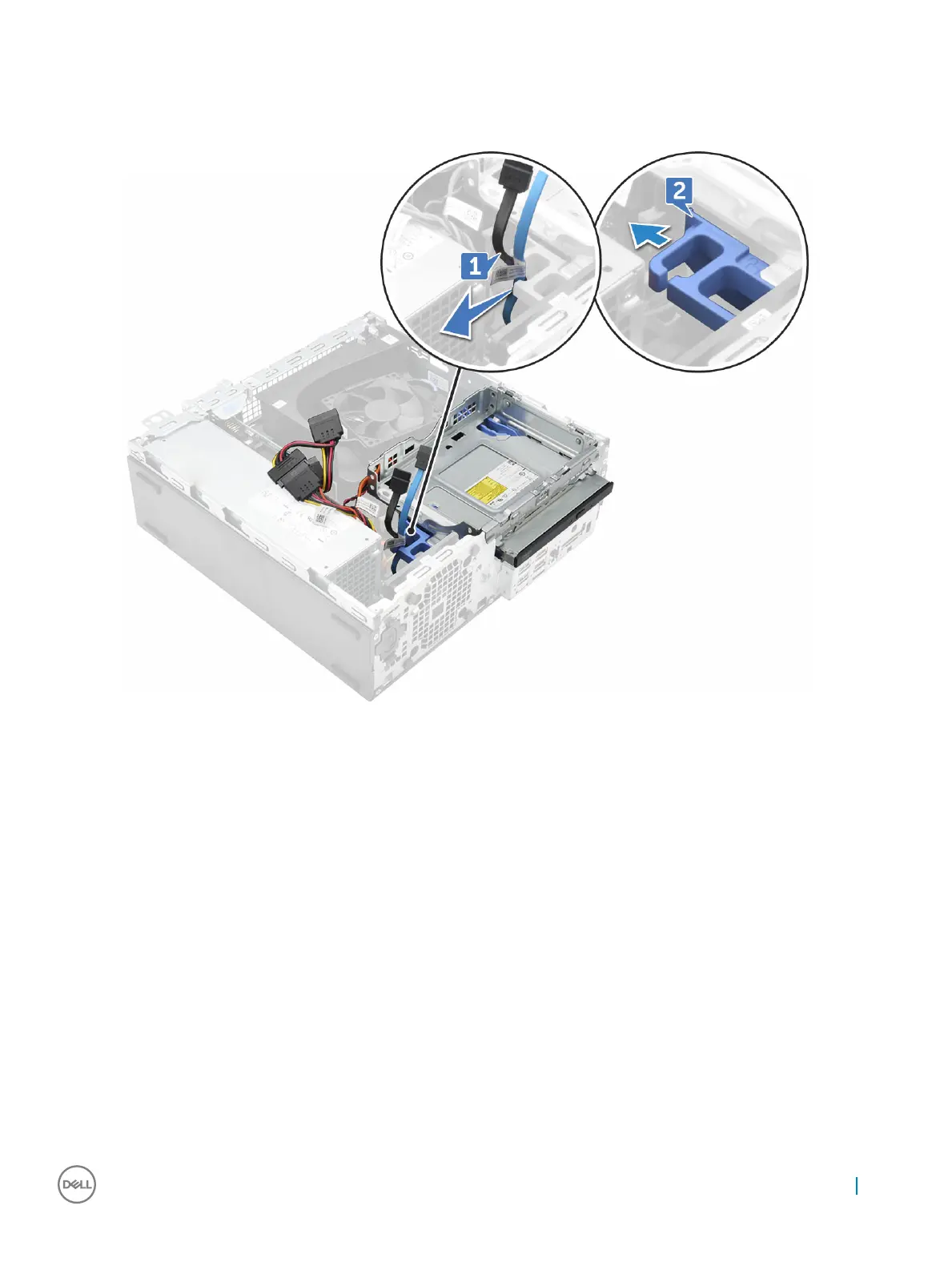

3 To remove optical drive:
a Release the cables from the retention clip [1].
b Slide the blue tab to unlock the optical drive assembly [2].
4 To remove the optical drive assembly:
a Pull the tab upward to release the assembly [1].
b Holding the tab, disconnect the optical drive cables [2].
c Slide and lift the optical drive assembly away from the computer [3].
Removing and installing components
23
