Installing the 2.5 inch hard drive into the drive bracket

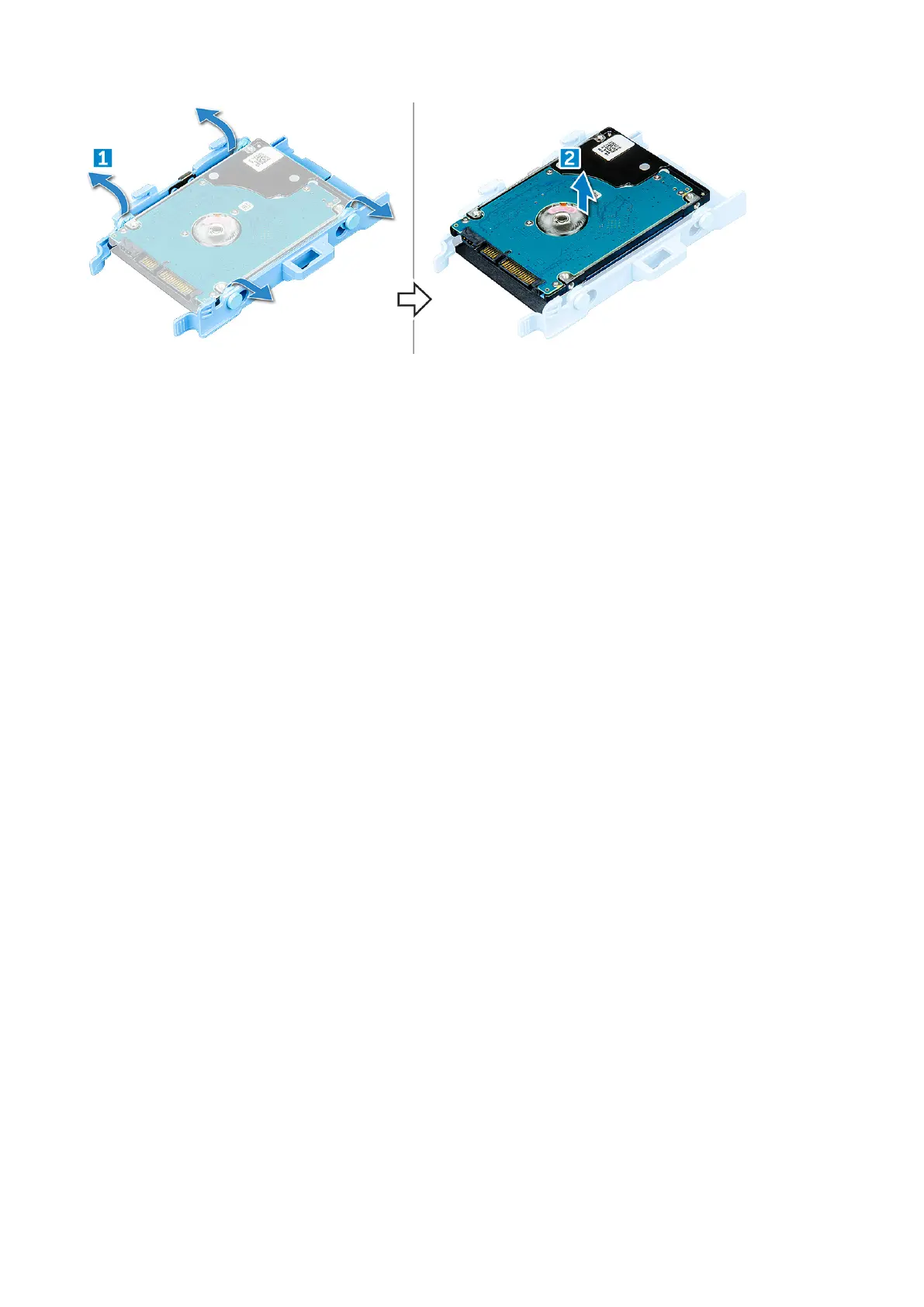

1. Align and insert the pins on the drive bracket with the slots on one side of the drive.
2. Flex the other side of the drive bracket, and align and insert the pins on the bracket into the drive.
3. Install the:
a. 2.5 inch hard drive assembly
b. Side cover
4. Follow the procedure in After working inside your computer.
Heat sink blower
Removing heat sink blower
1. Follow the procedure in Before working inside your computer.
2. Remove the Side cover.
3. To remove the heat sink blower:
a. Press the blue tabs on both sides of the heat sink blower [1].
b. Slide and lift the heat sink blower to release it from the system.
c. Turn the heat sink blower over to remove it from the system [2].
Removing and installing components
21
