Installing the hard drive
NOTE:
For configurations shipped with 3.5-inch HDD, follow the same procedure to install the HDD into its bracket.

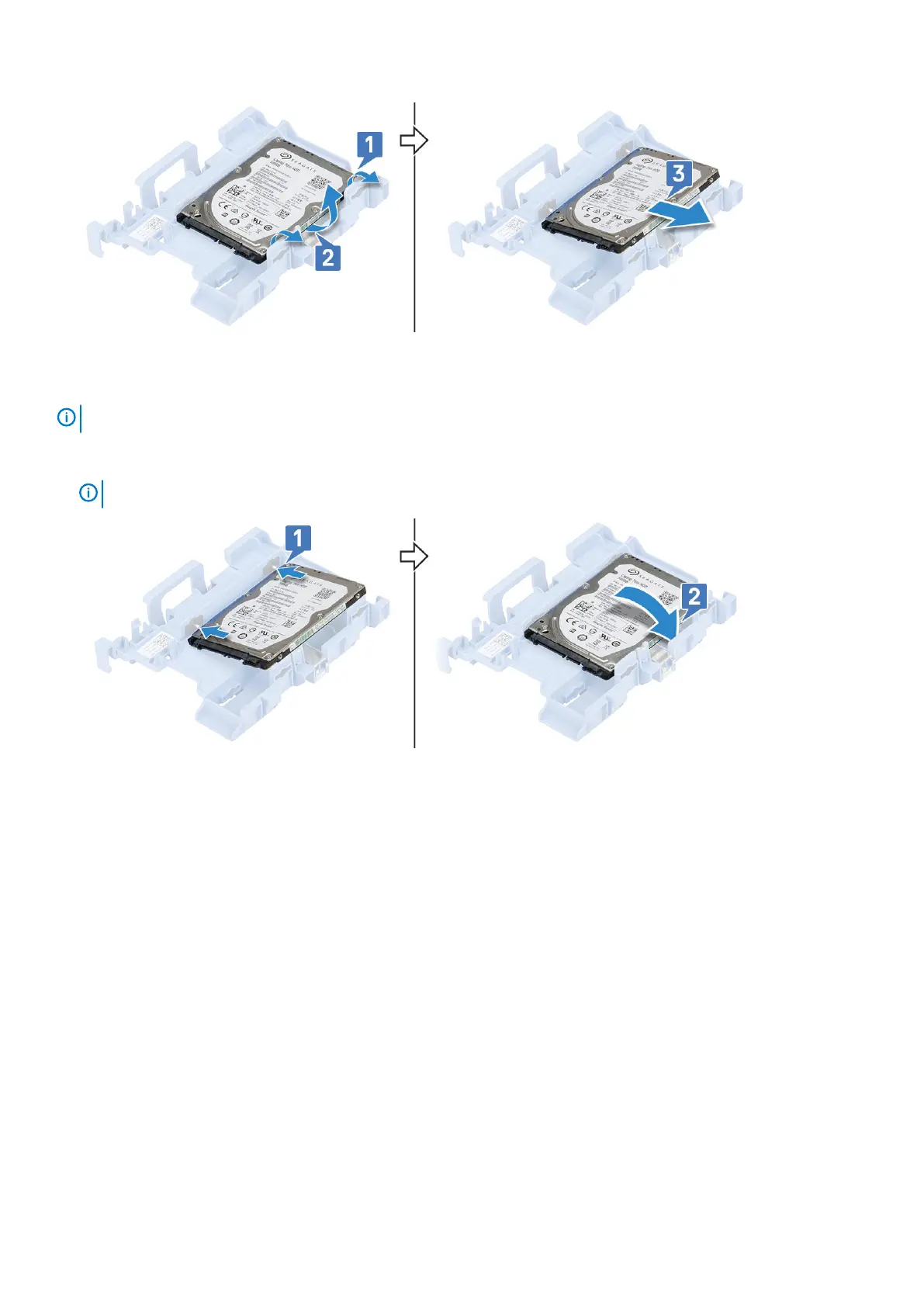

1. Insert the holes on one side of the hard disk into the pins on the hard drive bracket [1], and then place the hard drive into the bracket
such that the pins on other side of the bracket is aligned with the holes on the hard drive [2].
NOTE:
Follow the same procedure to install another 2.5-inch hard drive on the other side of the bracket.
2. Install the:
a) HDD assembly
b) side cover
3. Follow the procedure in After Working Inside Your Computer.
Bezel
Removing front bezel
1. Follow the procedure in Before working inside your computer.
2. Remove the Side cover.
3. To remove the front bezel:
a) Pry the retention tabs to release the front bezel from the system.
b) Remove the front bezel from the system.
Removing and installing components
23
