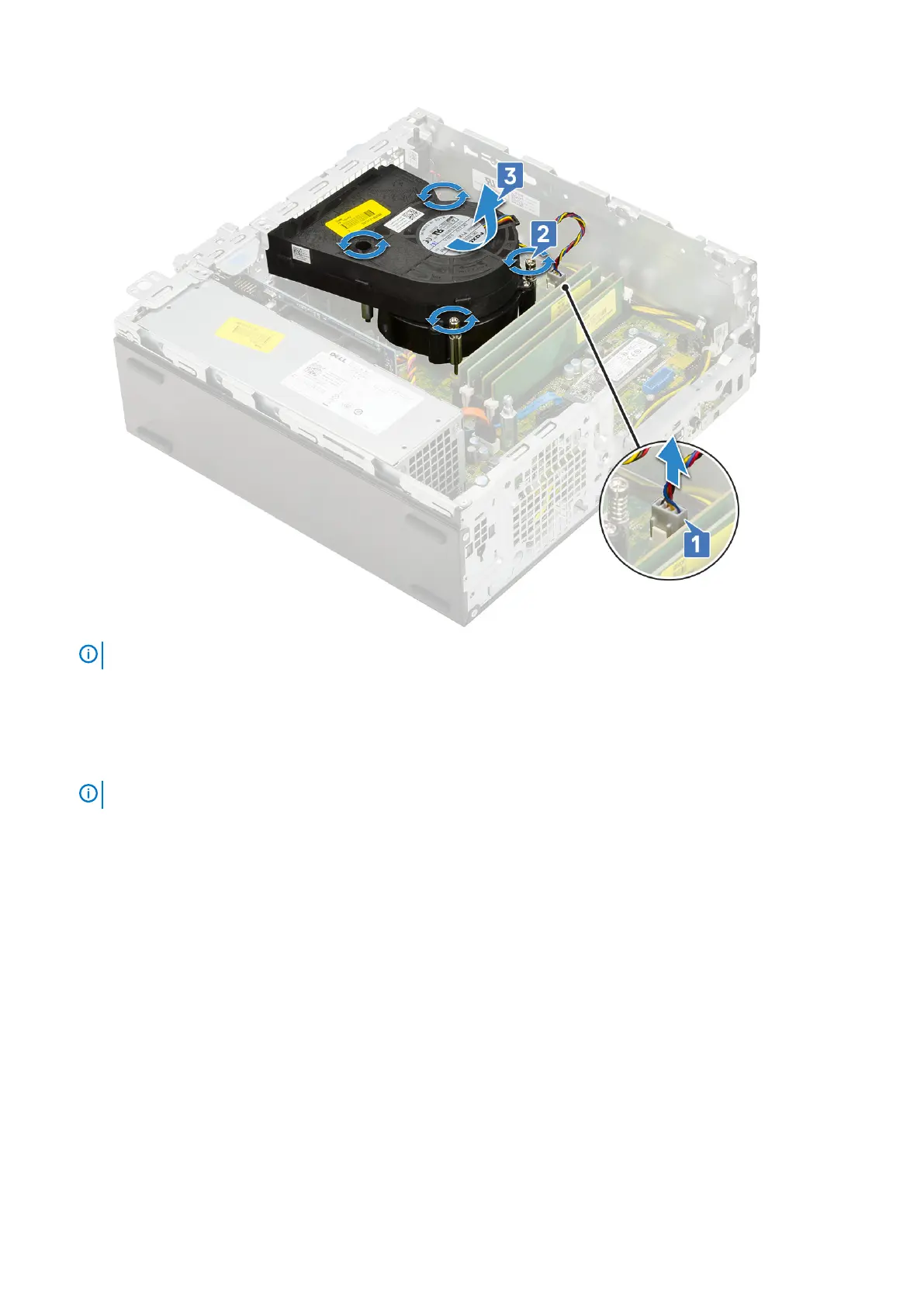

NOTE: Loosen the screws in a sequential order (1,2,3,4) as mentioned on the system board.
Installing heatsink assembly
1. Align the heatsink assembly onto the processor [1].
2. Tighten the 4 captive screws to secure the heatsink assembly to the system board [2].
NOTE:
Tighten the screws in a sequential order (1,2,3,4) as mentioned on the system board.
3. Connect the heatsink assembly fan cable to the connector on the system board [3].
Removing and installing components
43
