Dell Optiplex 5070 Small Form Factor Service Manual

3. Install the Side cover.
4. Follow the procedure in After working inside your computer.
Hard drive and optical drive module
Removing the hard drive and optical drive module
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a) Side cover

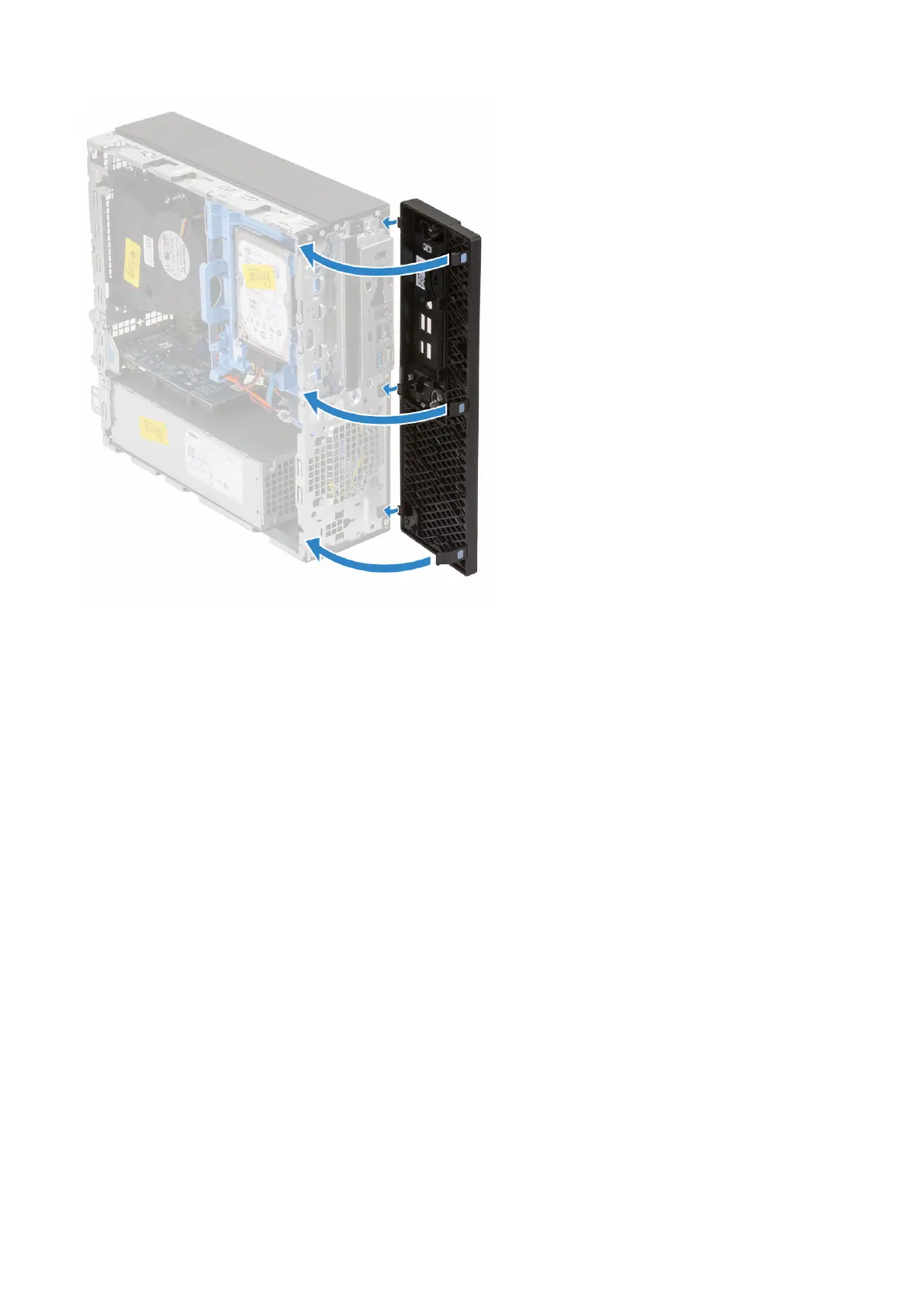

b) Front bezel
c) HDD assembly
3. To release the hard drive and optical drive module:
a) Unroute the optical drive cables [1] and hard drive cables [2] through the retention clip and HDD-ODD release tab respectively.
Removing and installing components
25
