Dell OptiPlex 580 - Mini Tower (MT) Computer View; Front and Back View

OptiPlex580TechnicalGuidebook Page4

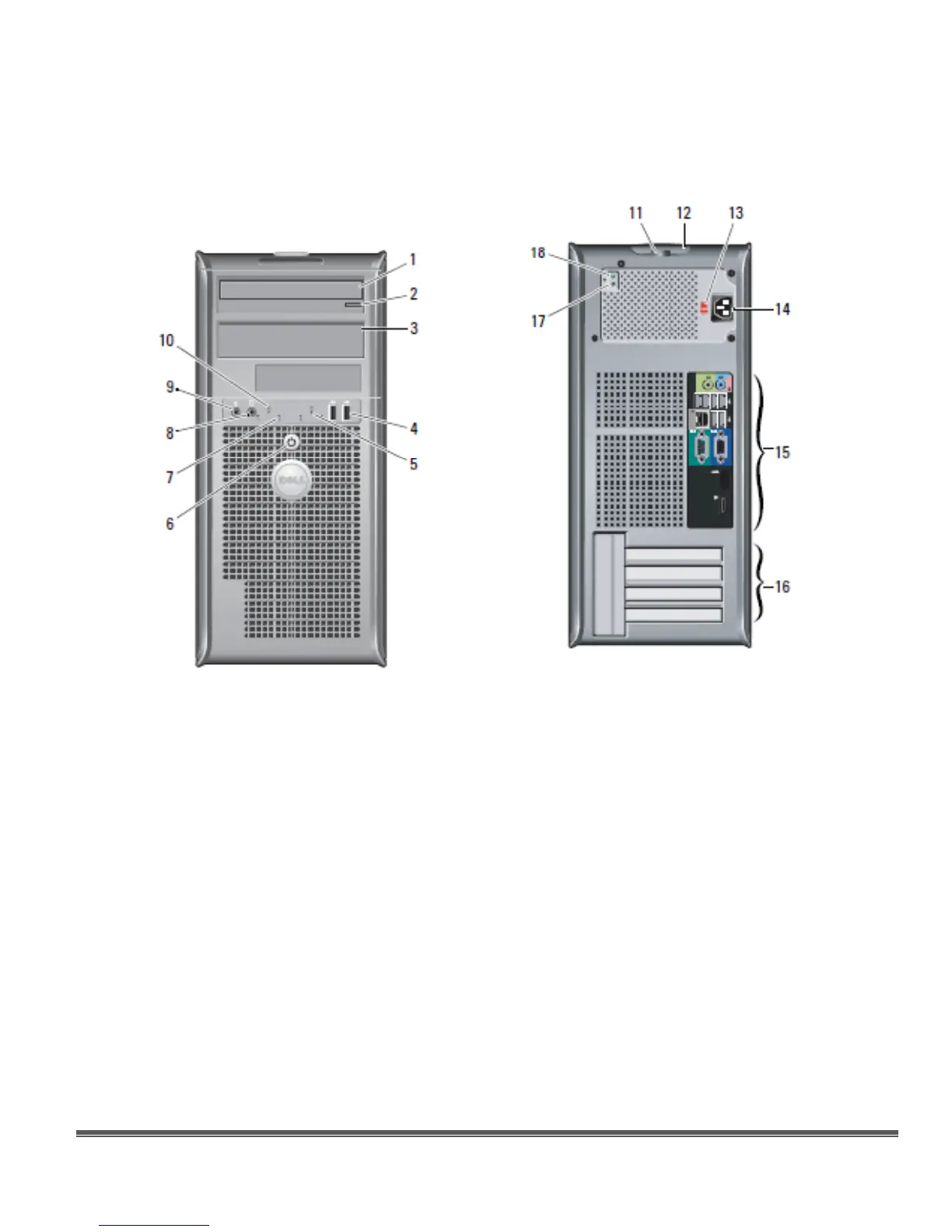

Mini Tower (MT) Computer View
Front and Back View
1 CD/DVD drive
2 CD/DVD drive eject button
3 CD/DVD drive panel
4 USB 2.0 connectors (2)
5 drive activity light
6 power button, power light
7 diagnostic lights (4)
8 headphone connector
9 microphone connector
10 network connectivity light
11 padlock ring
12 cover-release latch, security cable slot
13 voltage selector switch
14 power cable connector
15 back panel connectors
16 expansion card slots (4)
17 power supply diagnostic button
18 power supply diagnostic light
