Dell OptiPlex 580 - DT Back Panel Connectors; DT System Board

OptiPlex580TechnicalGuidebook Page7

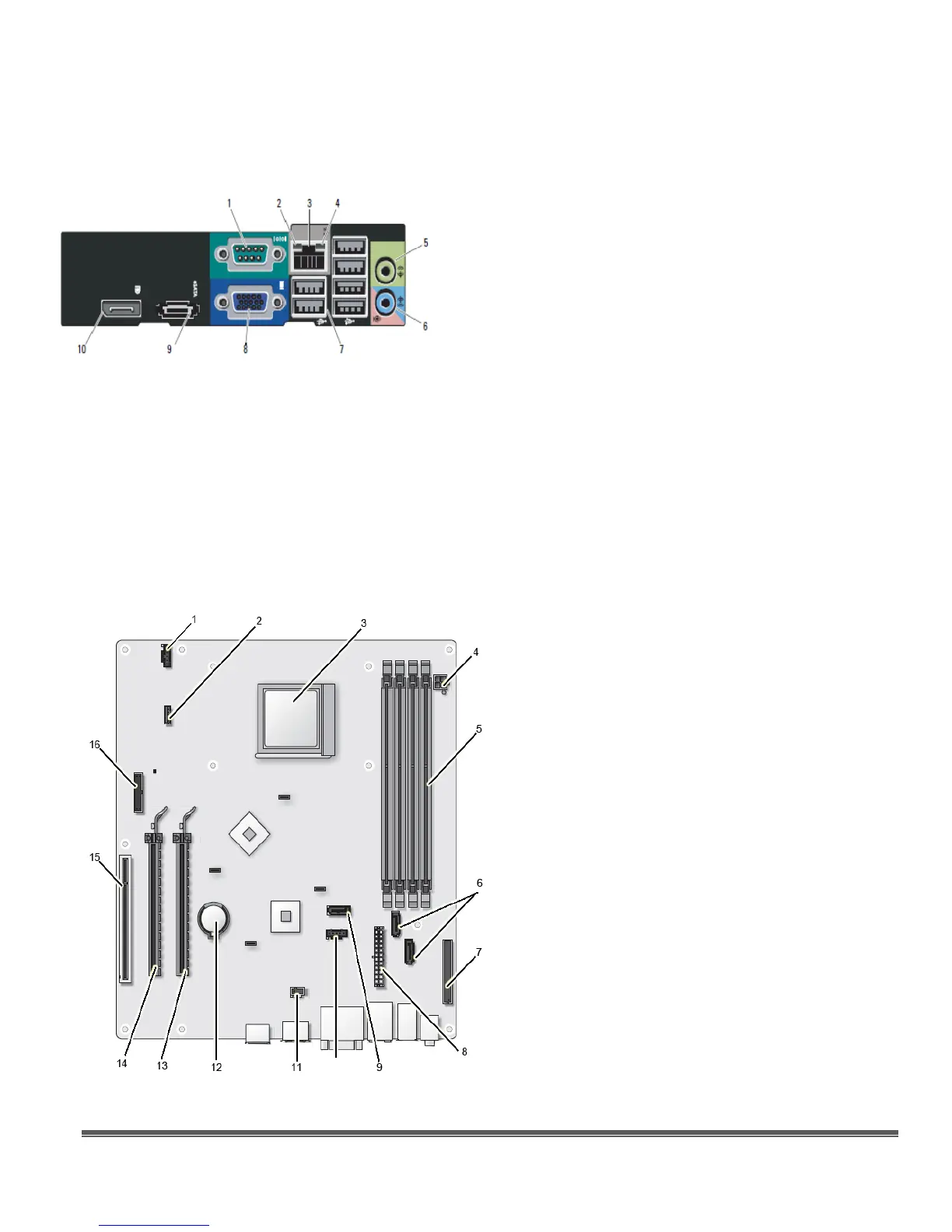

DT Back Panel Connectors
1 serial connector
2 link integrity light
3 network adapter connector
4 network activity light
5 line-out connector
6 line-in/microphone connector
7 USB 2.0 connectors (6)
8 VGA connector
9 eSata connector
10 DisplayPort connector
DT System Board
1 Fan connector (FAN_CPU)
2 Speaker connector (INT_SPKR)
3 Processor connector (CPU)
4 Processor power connector (12VPOWER)
5 Memory module connectors (4)
6 SATA connectors (SATA0, SATA1)
7 Front-panel connector (FRONTPANEL)
8 Power connector (POWER)
9 SATA connectors (SATA2)
10 N/A
11 Intrusion switch connector (INTRUDER)
12 Battery socket (BATTERY)
13 PCI Express x16 connector (SLOT1)
14 PCI Express x4 connector (SLOT2)
15 PCI connector (SLOT3)
16 PS/2 or serial connector (SERIAL2)
