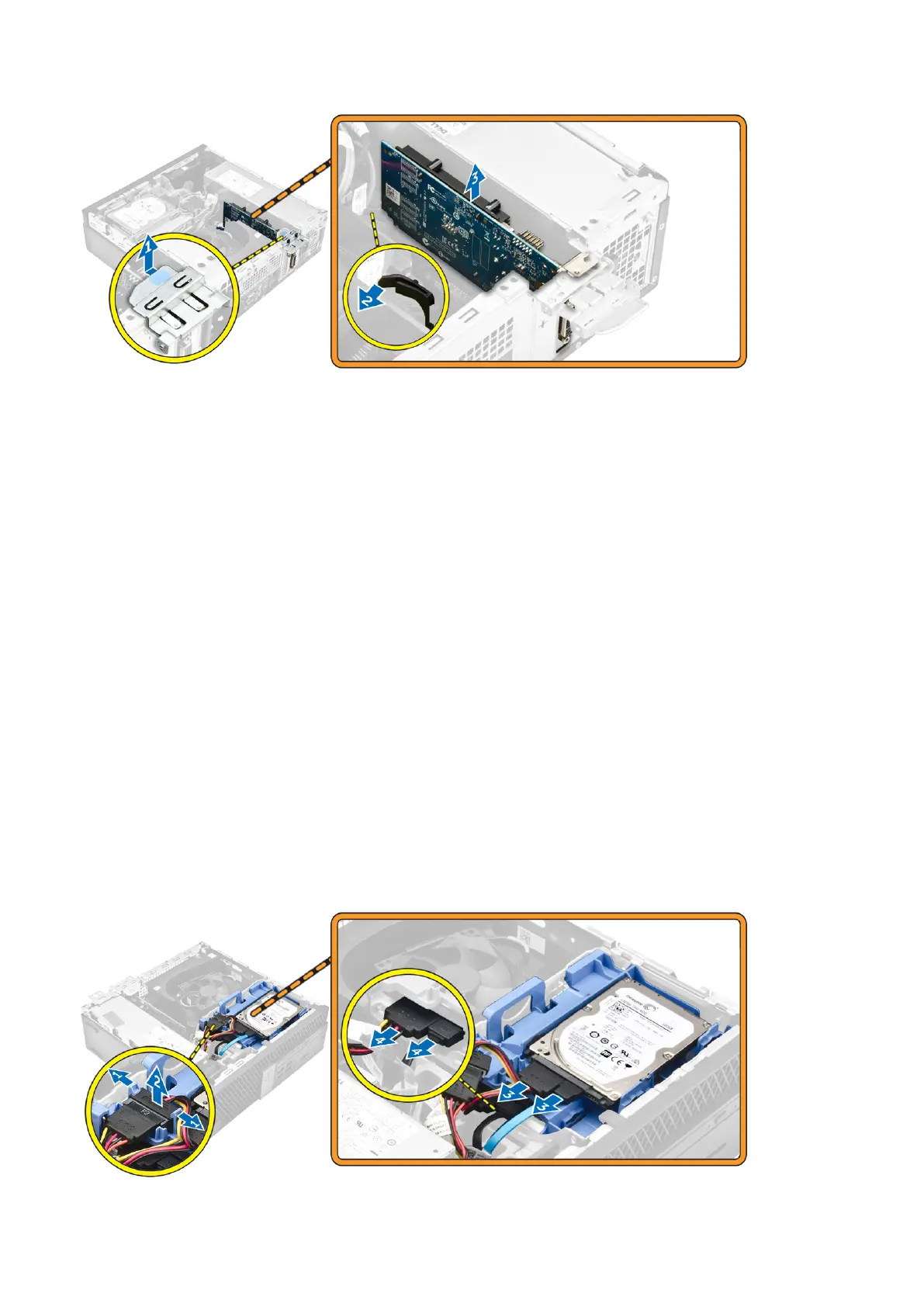

Installing the expansion card
Steps
1. Insert the expansion card into the connector on the system board.
2. Press the expansion card until it clicks into place.
3. Close the expansion card latch and press it until it clicks into place.
4. Install the:
a. fan duct
b. cover
5. Follow the procedure in After Working Inside Your Computer.
Removing the hard drive assembly
Steps
1. Follow the procedure in Before Working Inside Your Computer.
2. Remove the:
a. cover
b. fan duct
3. To release the hard drive assembly:
a. Push the retention tabs and remove the power connector [1,2].
b. Disconnect the data and power cables from the hard drives [3, 4].
Removing and installing components
11
