Dell OptiPlex 7040-Small Form Factor User Manual

Removing the cover
Steps
1. Follow the procedure in Before Working Inside Your Computer.

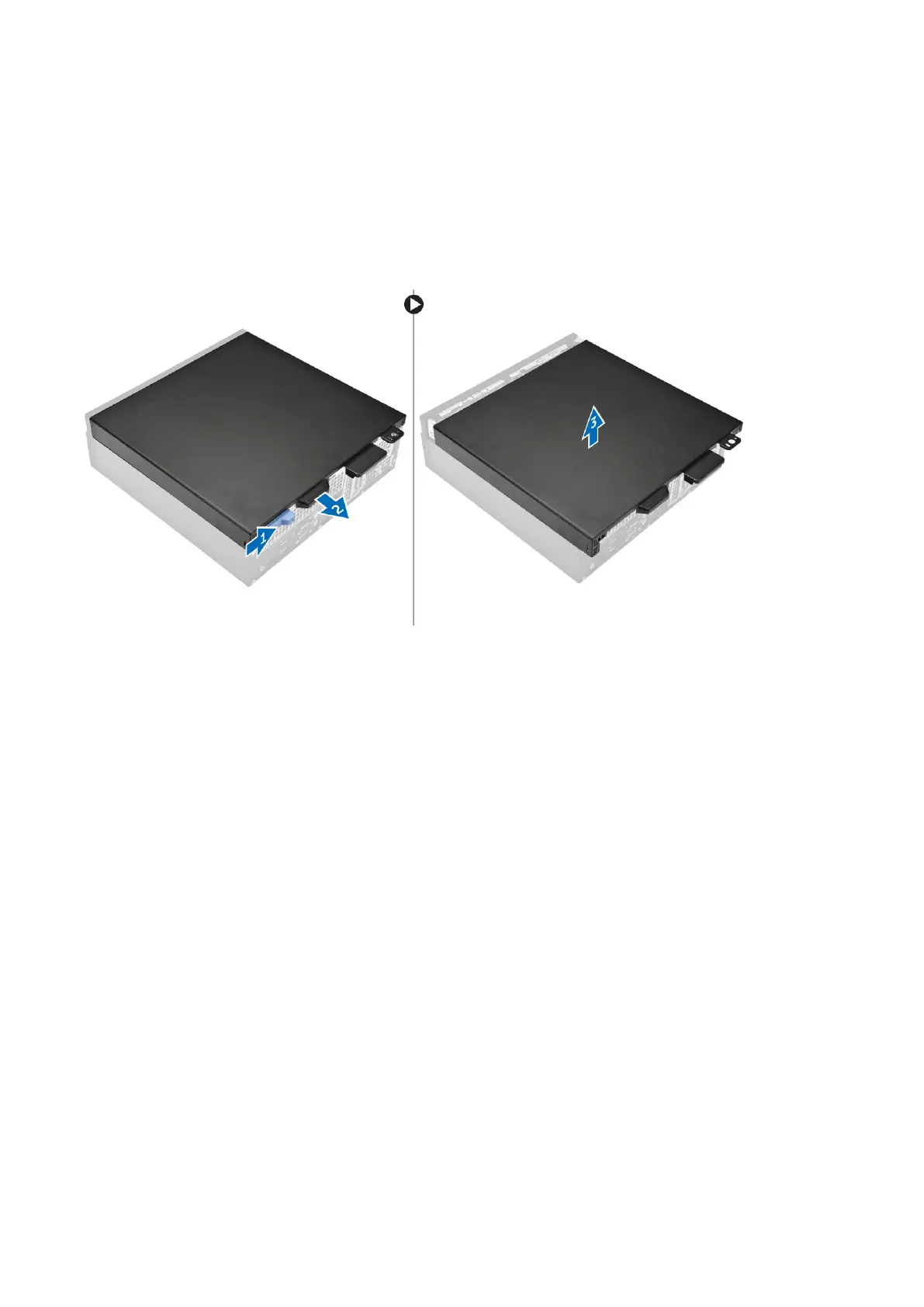

2. To remove the cover:
a. Slide the blue retention tab to the right to unlock the cover [1].
b. Slide the cover toward the back of the computer [2].
c. Lift the cover from the computer [3].
Installing the cover
Steps
1. Place the cover on the computer and slide the cover until it clicks into place.
2. Follow the procedure in After Working Inside Your Computer
Removing the front bezel
Steps
1. Follow the procedure in Before Working Inside Your Computer.
2. Remove the cover.
3. To remove the front bezel:
a. Lift the tabs to release the front bezel from the computer [1].
b. Remove the front bezel from the computer [2].
Removing and installing components
7
