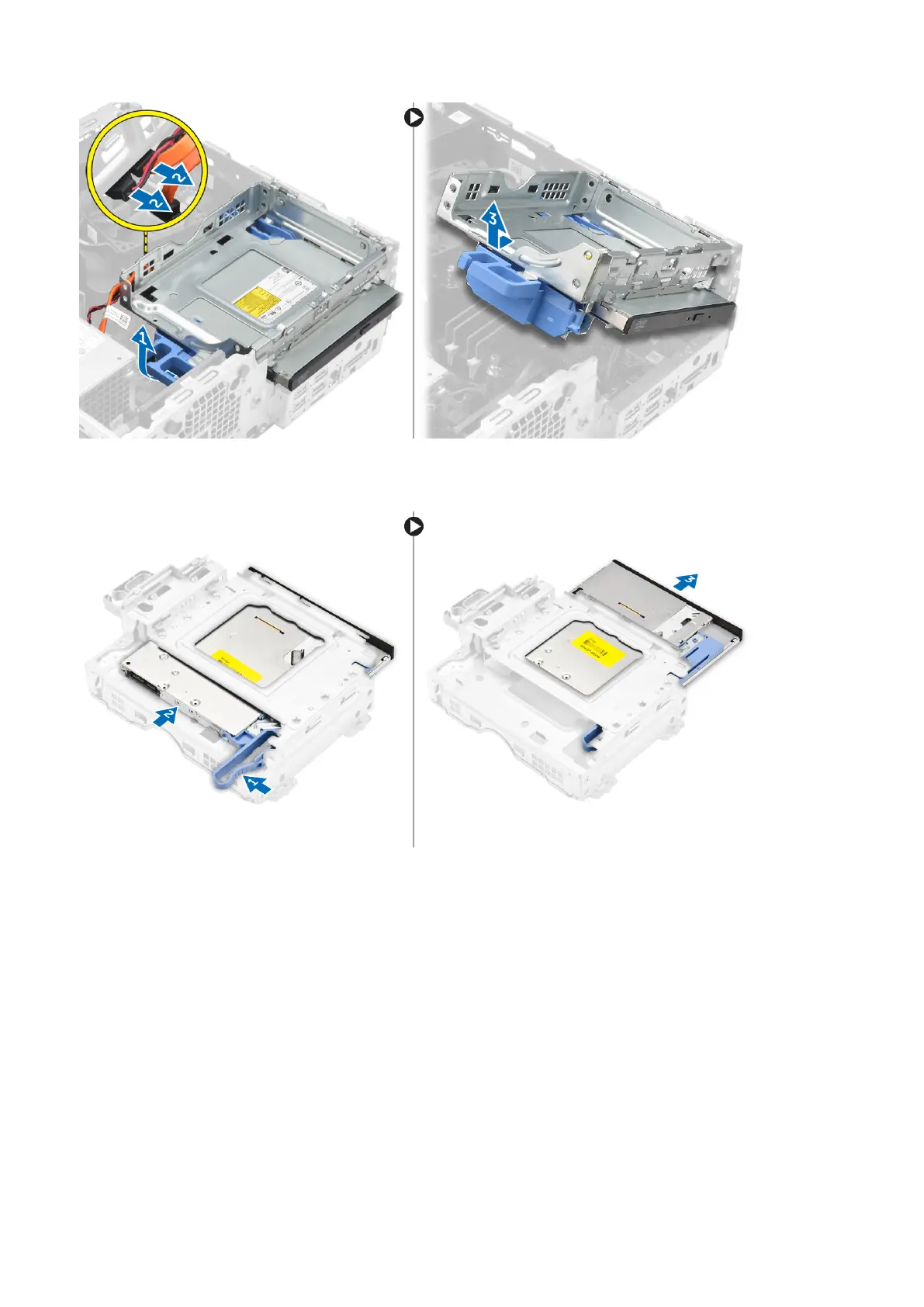

5. To remove the optical drive from the optical drive cage:
a. Press the optical drive release latch [1] and slide the optical drive forward. [2]
b. Remove the optical drive from the optical drive cage [3].
Installing the optical drive
Steps
1. Slide the optical drive into the optical drive cage.
2. Align the tabs on the optical cage with the slots on the computer.
3. Lower the optical drive cage into the computer and lock the latch.
4. Connect the data and power cables to the optical drive.
5. Install the:
a. hard drive assembly
b. front bezel
c. cover
6. Follow the procedure in After Working Inside Your Computer.
14
Removing and installing components
