Installing the system fan

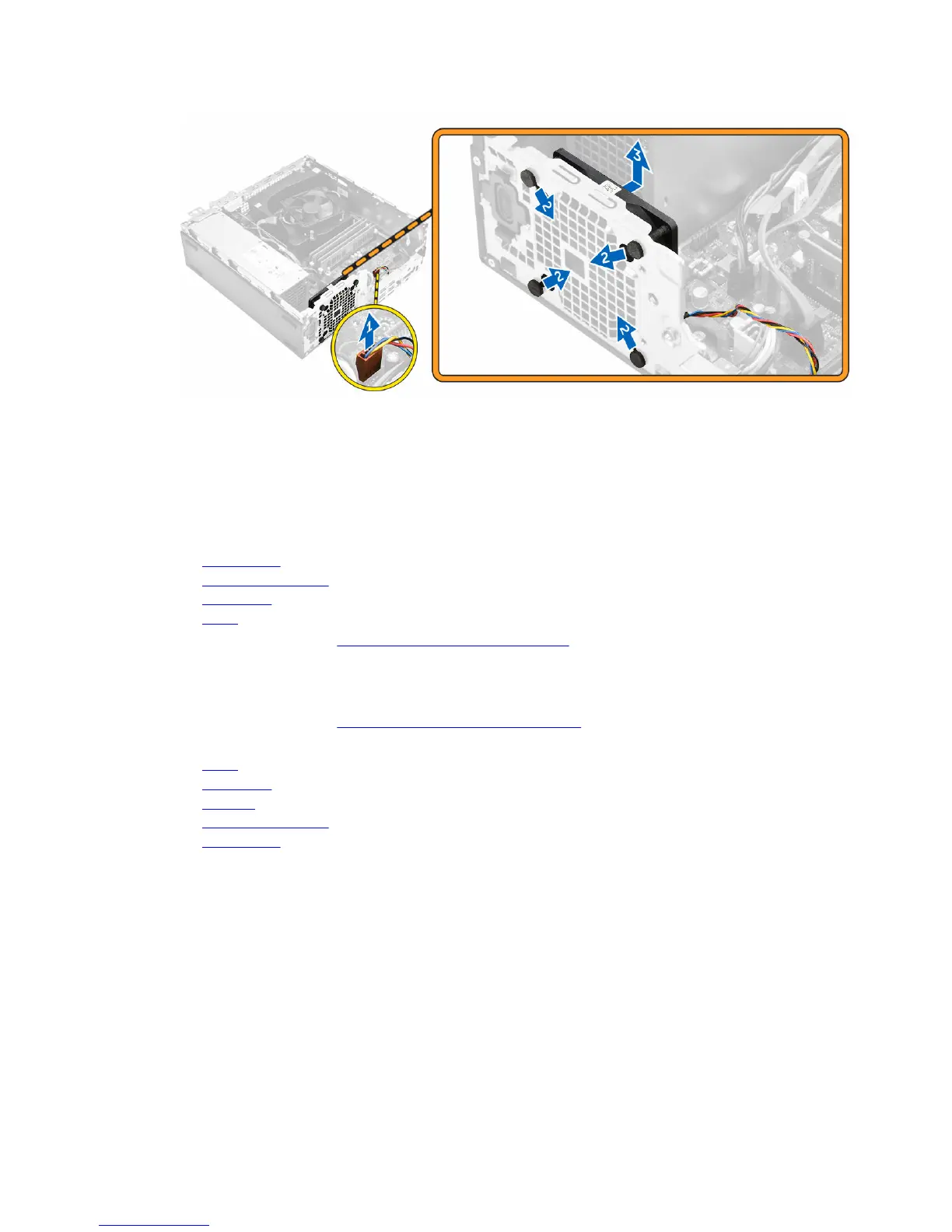

1. Place the system fan in the computer.
2. Pass the grommets through the chassis and slide outward along the groove to secure it in place.
3. Connect the system fan cable to the system board.
4. Install the:
a. optical drive
b. hard drive assembly
c. front bezel
d. cover
5. Follow the procedure in After Working Inside Your Computer.
Removing the heat sink assembly
1. Follow the procedure in Before Working Inside Your Computer.
2. Remove the:
a. cover
b. front bezel
c. fan duct
d. hard drive assembly
e. optical drive
3. To remove the heat sink assembly:
a. Disconnect the heat sink cable from the system board. [1]
b. Loosen the captive screws that secure the heat sink assembly and lift it away from the computer
[2] [3].
