Dell OptiPlex 7040 - Page 27

4. Disconnect all the cables connected to the system board.

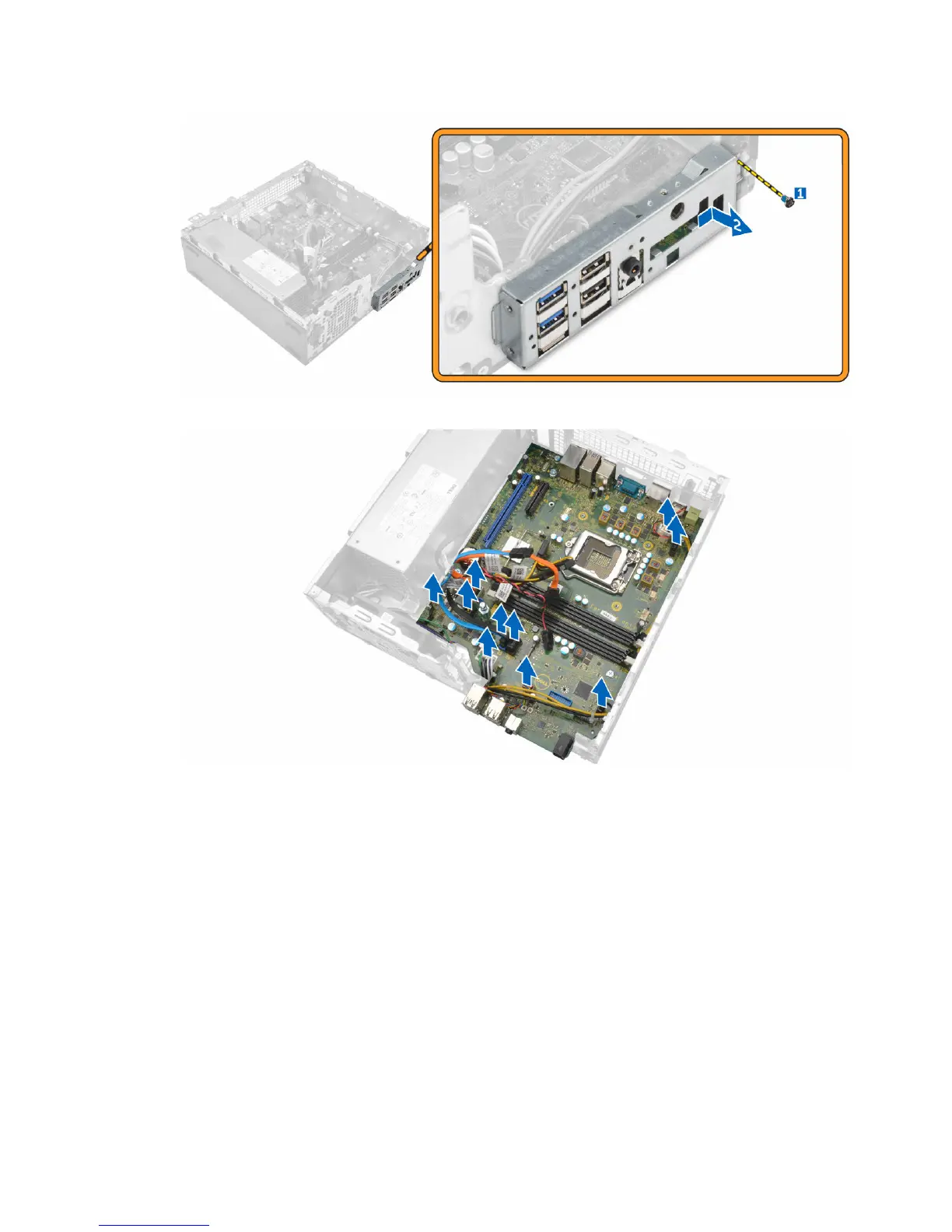

5. To remove the system board:
a. Remove the screws that secure the system board to the computer [1].
b. Slide the system board toward the front of the computer and lift it from the computer [2].
27
