Dell OptiPlex 7071 Tower - 3.5-Inch Hard Drive; Removing the 3.5-Inch Hard Drive

About this task

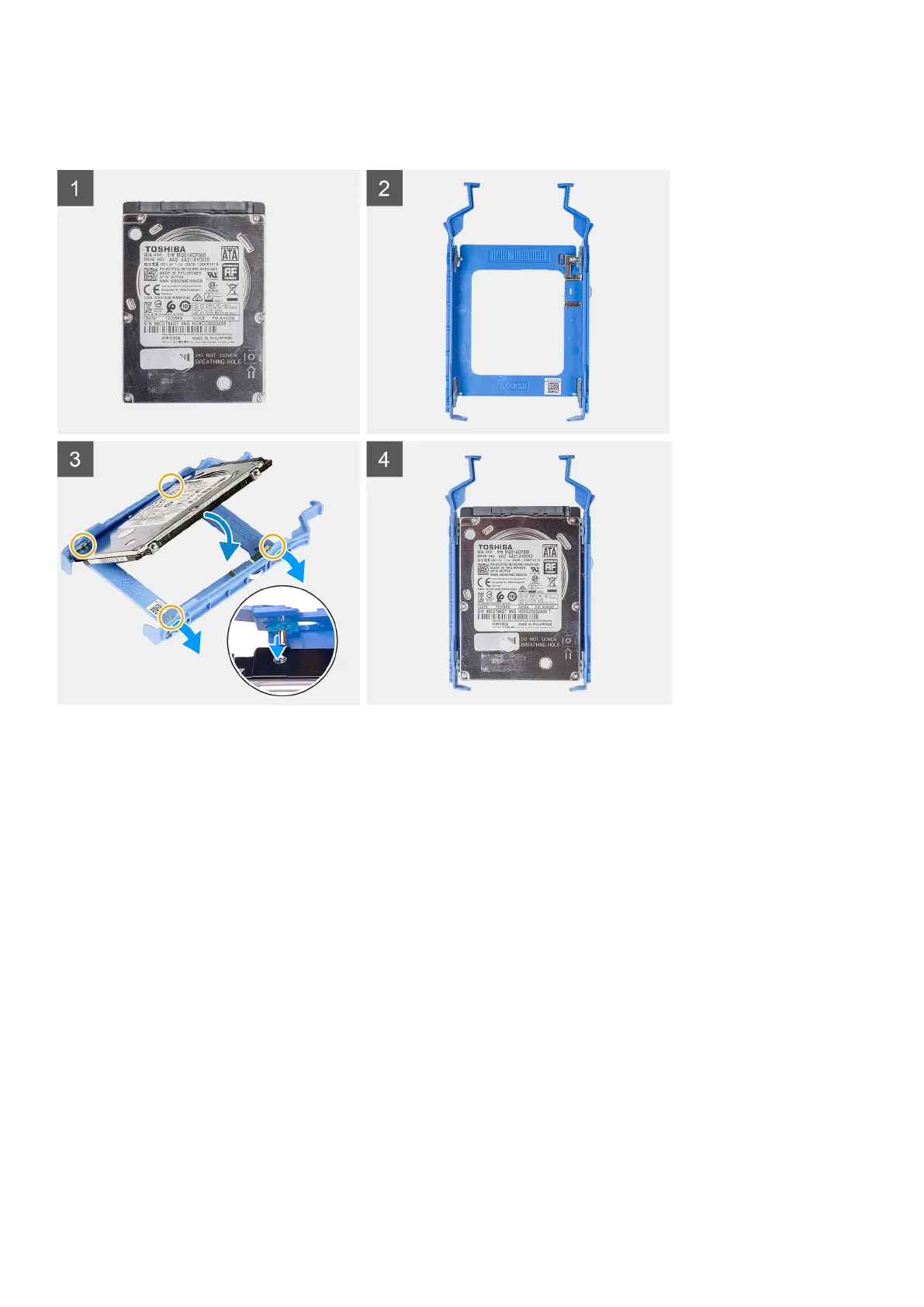

The following images indicate the location of the 2.5-inch hard drive bracket and provides a visual representation of the installation
procedure.
Steps
1. Place the hard drive into the hard-drive bracket and align the tabs on the bracket with the slots on the hard drive.
2. Snap the hard drive into the hard-drive bracket.
Next steps
1. Install the 2.5-inch hard drive assembly.
2. Install the left-side cover.
3. Follow the procedure in After working inside your computer.
3.5-inch hard drive
Removing the 3.5-inch hard drive
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the left-side cover.
Disassembly and reassembly
