Steps

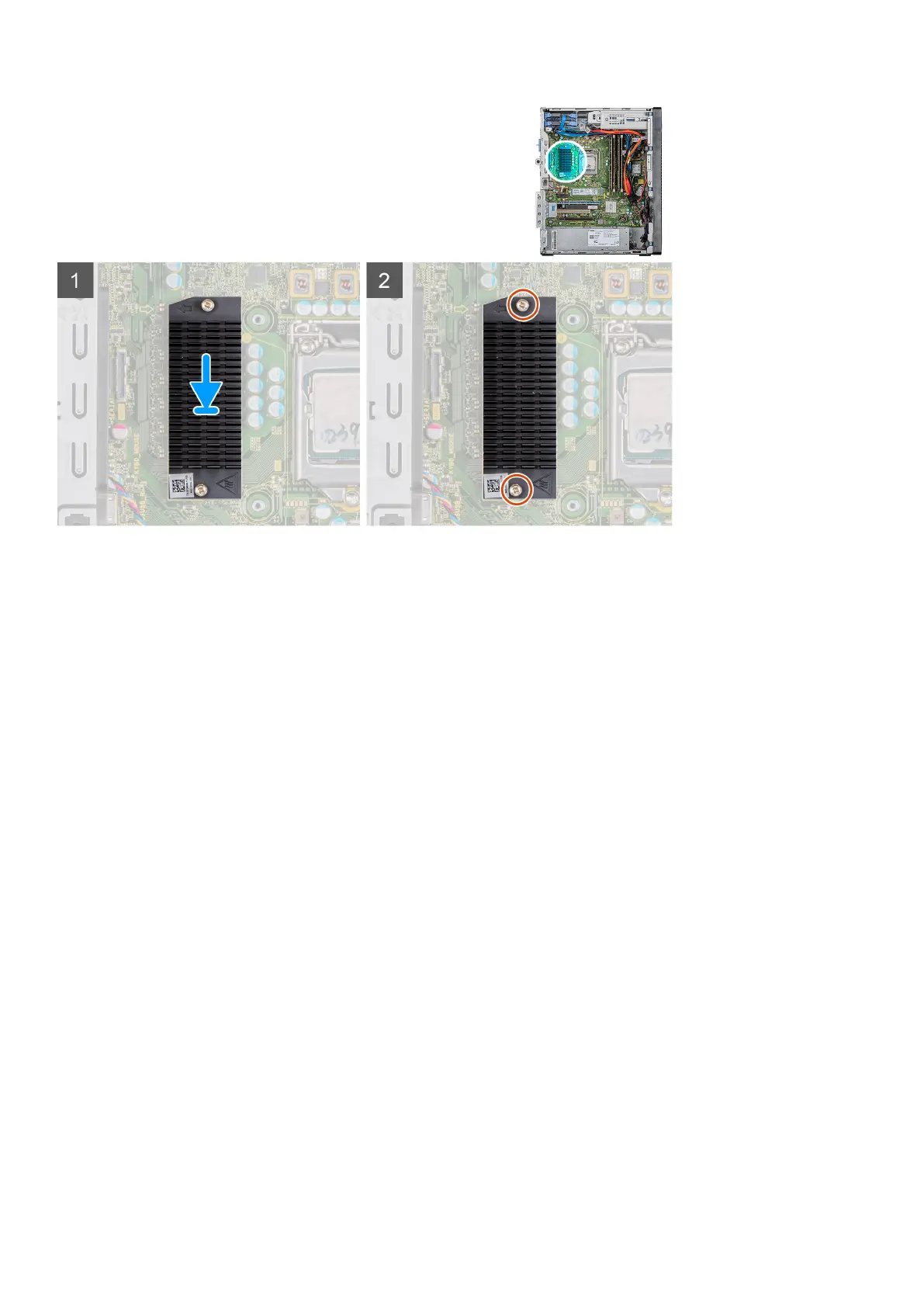

1. Align and place the VR heat sink on the system board.
2. Tighten the two captive screws that secure the VR heat sink to the system board.
Next steps
1. Install the left-side cover.
2. Follow the procedure in After working inside your computer.
Speaker
Removing the speaker
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the left-side cover.
About this task
The following images indicate the location of the speaker and provides a visual representation of the removal procedure.
52
Disassembly and reassembly
