Dell OptiPlex 7071 Tower - Slim Optical-Drive Bracket; Removing the Slim ODD Bracket

Steps

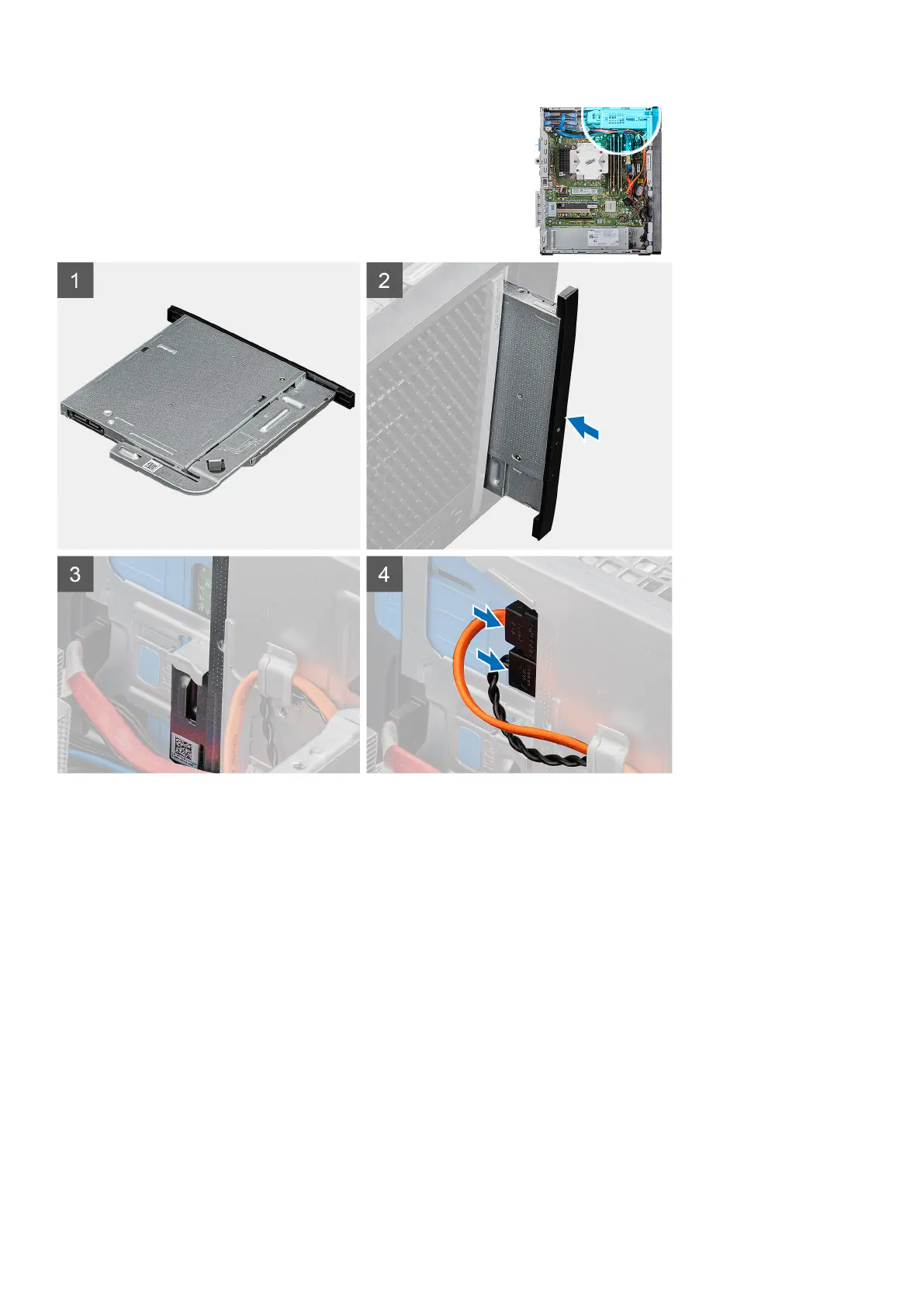

1. Insert the ODD assembly into the ODD slot.
2. Slide the ODD assembly until it snaps into place.
3. Route the power cable and data cable through the routing guides and connect the cables to the ODD.
Next steps
1. Install the left-side cover.
2. Follow the procedure in After working inside your computer.
Slim optical-drive bracket
Removing the slim ODD bracket
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the left-side cover.
Disassembly and reassembly
25
