6. From inside the computer cover, remove the mounting screw that secures the I/O panel to the computer.

7. Ease the I/O panel back and forth to release its circular tabs from the two holes in the chassis that secure it.

8. Remove any remaining cables; note the routing of all cables, so that you can reroute them

9. Remove the I/O panel from the computer.

Replacing the I/O Panel

1. To replace the I/O panel, follow the removal procedures in the reverse order.
Back to Contents Page

1

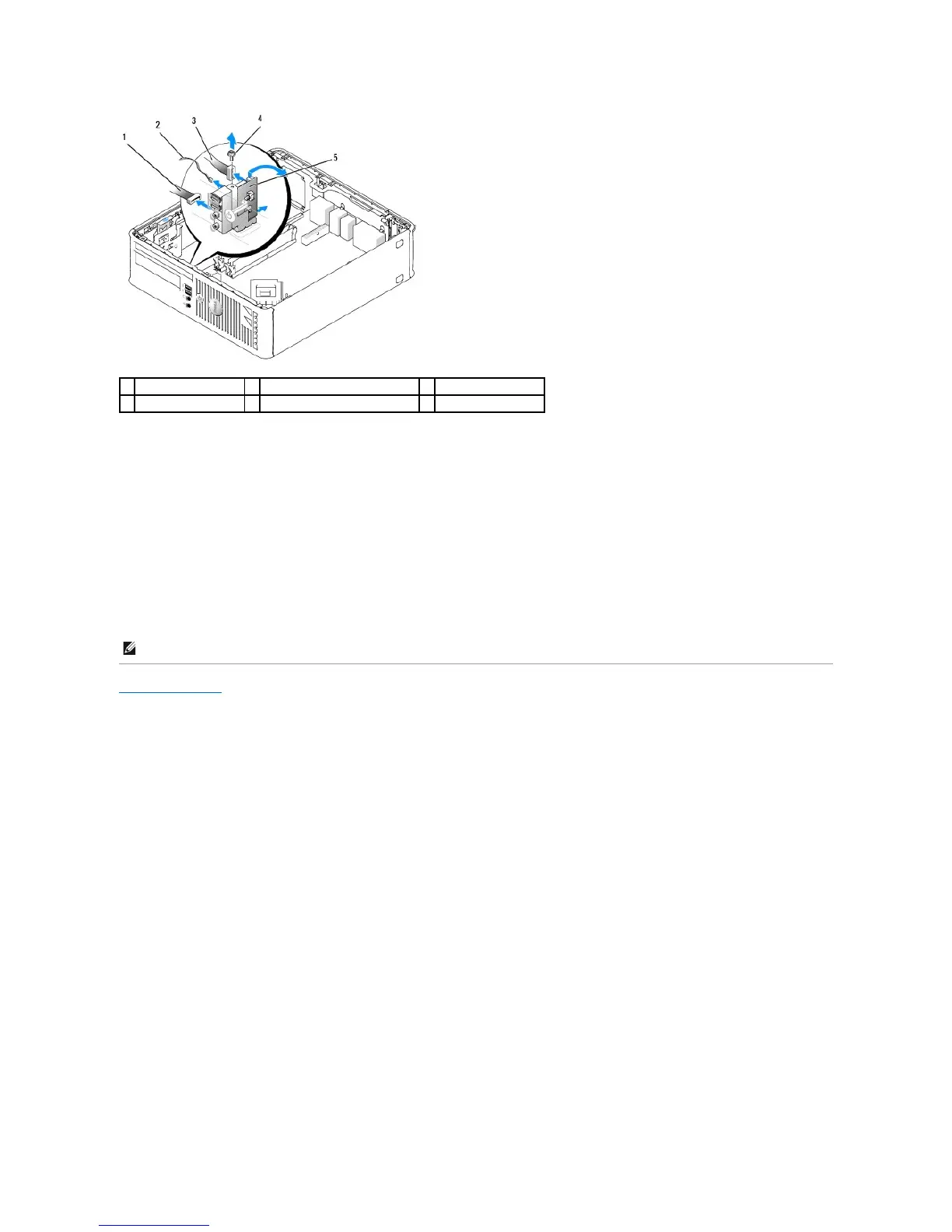

fan cable connector
2
air temperature sensor cable
3
I/O cable connector
4
screw
5
I/O panel


NOTE: Use the guides on the I/O panel bracket to help position the I/O panel in place and use the notch on the I/O panel bracket to help seat the card.
