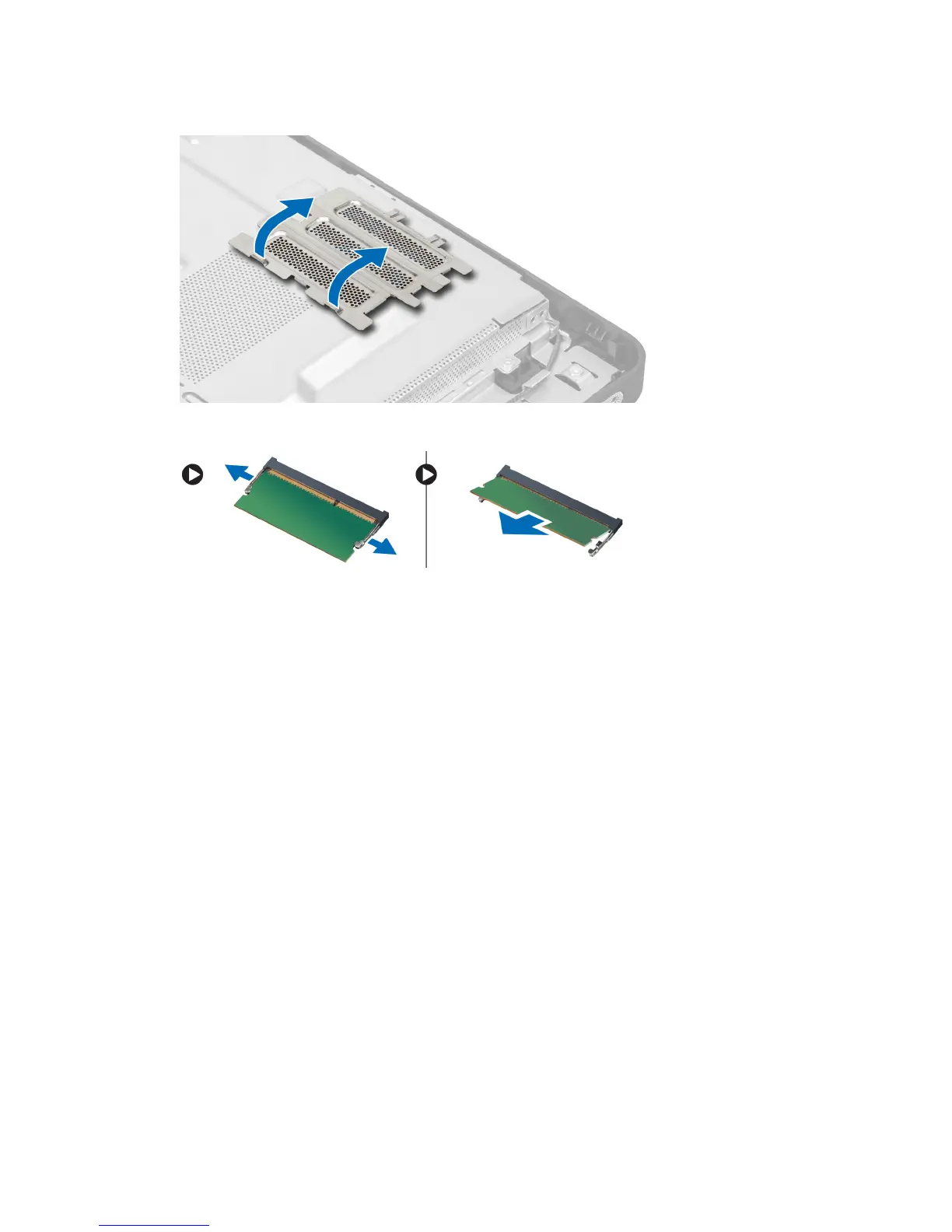

3. Lift the memory shield outwards.
4. Pry the retention clips away from the memory module until it pops up. Lift and remove the memory module from its
connector.
Installing the Memory
1. Align the notch on the memory-card with the tab in the system-board connector.
2. Press down on the memory module until the release tabs spring back to secure them in place.
3. Place the memory shield back into its place.
4. Install the:
a) back cover
b) VESA stand
5. Follow the procedures in After Working Inside Your Computer .
Removing the VESA Mount Bracket
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove the:
a) VESA stand
b) back cover
3. Remove the screws that secure the VESA mount bracket to the computer. Lift the bracket away from the computer.
14

Dell OptiPlex 9010 Specifications

General

Tcase	67.4 °C
Bus type	DMI
Stepping	E1
Processor cache	6 MB
Processor cores	4
Processor model	i5-3550
System bus rate	5 GT/s
Processor family	Intel® Core™ i5
Processor series	Intel Core i5-3500 Desktop series
Processor socket	LGA 1155 (Socket H2)
Processor codename	Ivy Bridge
Processor frequency	3.3 GHz
Processor cache type	Smart Cache
Processor lithography	22 nm
Processor manufacturer	Intel
Processor front side bus	- MHz
PCI Express slots version	3.0
Processor boost frequency	3.7 GHz
Processor operating modes	64-bit
ECC supported by processor	No
PCI Express configurations	1x8, 1x16, 2x4, 2x8
Thermal Design Power (TDP)	77 W
Number of processors installed	1
CPU multiplier (bus/core ratio)	33
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1333, 1600 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
Maximum internal memory supported by processor	32 GB
Product type	PC
Motherboard chipset	Intel® Q77 Express
Password protection type	BIOS
Memory slots	4x DIMM
Internal memory	4 GB
Memory channels	Dual-channel
Memory clock speed	1600 MHz
Memory layout (slots x size)	1 x 4 GB
HDD size	2.5 \
HDD speed	7200 RPM
HDD interface	SATA, SATA II
Optical drive type	DVD±RW
Card reader integrated	Yes
Total storage capacity	320 GB
Networking features	Gigabit Ethernet
On-board graphics card ID	0x152
Discrete graphics card model	-
On-board graphics card model	Intel® HD Graphics 2500
On-board graphics card family	Intel® HD Graphics
On-board graphics card base frequency	650 MHz
On-board graphics card dynamic frequency (max)	1150 MHz
Number of displays supported (on-board graphics)	3
Bundled software	Office Starter
Operating system installed	Windows 7 Professional
HDMI ports quantity	0
PS/2 ports quantity	2
USB 2.0 ports quantity	8
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Chassis type	Desktop
Product color	Black
Sustainability certificates	RoHS, ENERGY STAR
Certification	CECP, WEEE
Power supply	250 W
Processor ARK ID	65516
Intel TSX-NI version	0.00
Processor package size	37.5 x 37.5 mm
Supported instruction sets	AVX, SSE4.1, SSE4.2
Thermal solution specification	PCG 2011D
Intel Identity Protection Technology version	1.00

Weight and Dimensions

Depth	410 mm
Width	102 mm
Height	360 mm
Weight	7900 g
