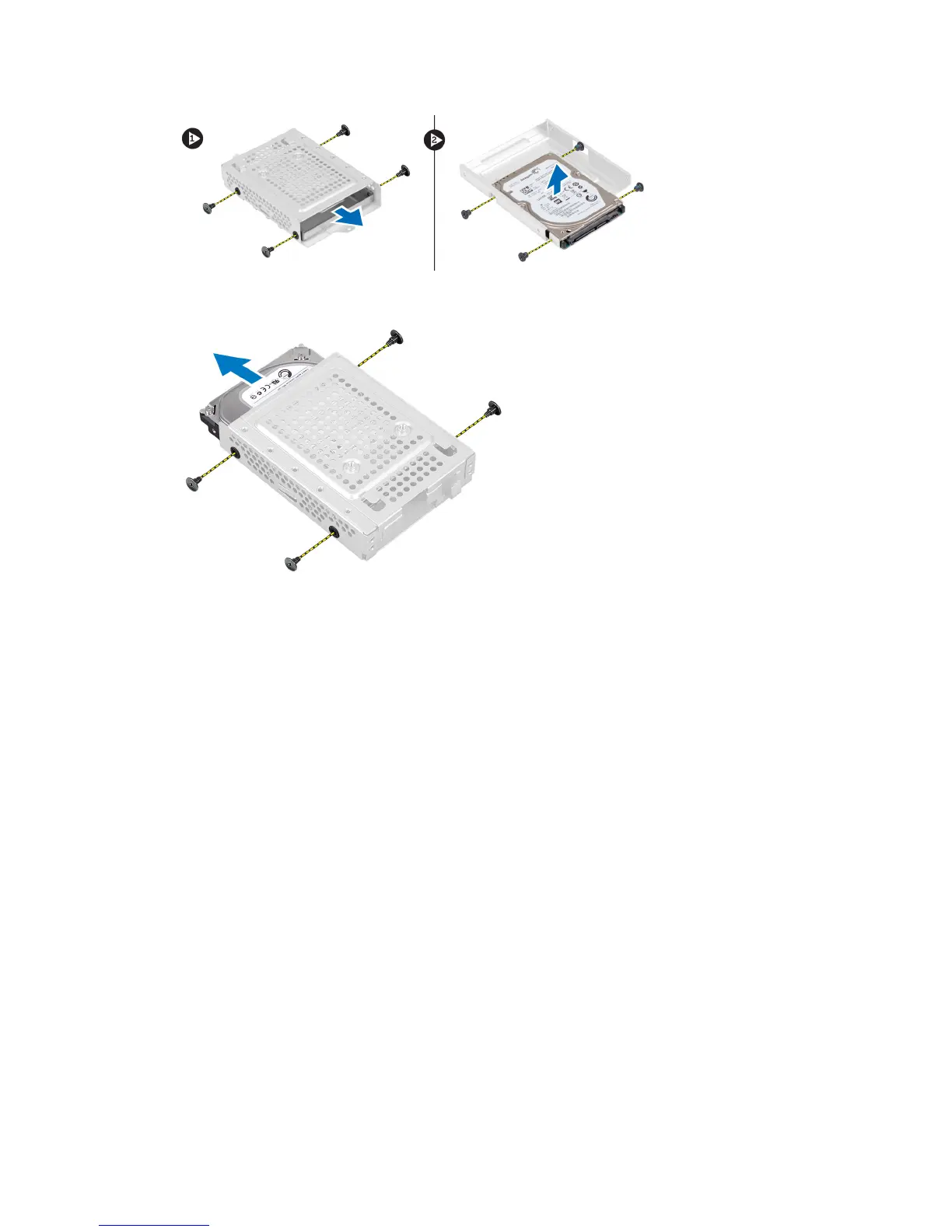

6. For a 3.5–inch hard drive, remove the screws that secure the hard drive to the hard-drive bracket. Slide the hard
drive from the hard-drive bracket.
Installing the Hard Drive
1. For a 3.5–inch hard drive, slide the hard drive into the hard-drive bracket. Tighten the screws that secure the hard
drive to the hard-drive bracket.
2. For a 2.5–inch hard drive, tighten the screws that secure the hard-drive case to the hard drive. Slide the hard drive
into the hard-drive bracket. Tighten the screws that secure the hard drive to the hard-drive bracket.
3. Align and place the hard-drive bracket on the computer. Tighten the screw that secures the hard-drive bracket to
the system board.
4. Connect the hard drive cables to the hard drive. Thread the cables into the notches on the hard-drive bracket.
5. Install:
a) VESA mount bracket
b) back cover
c) VESA stand
6. Follow the procedures in
After Working Inside Your Computer
.
Removing the Intrusion Switch
1. Follow the procedures in
Before Working Inside Your Computer
.
2. Remove the:
a) VESA stand
b) back cover
c) VESA mount bracket
d) system-board shield
