Dell OptiPlex 9010 - Page 28

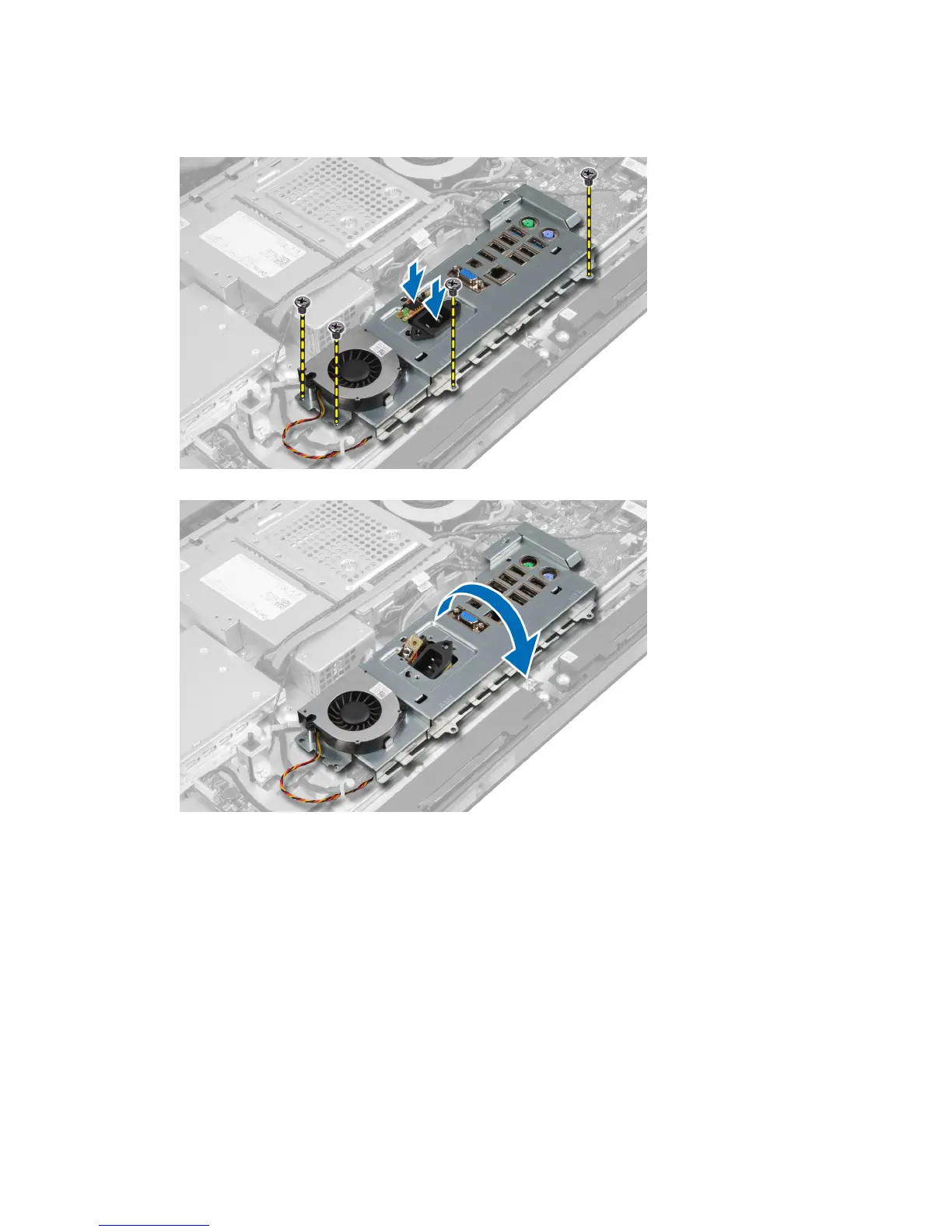

5. Remove the screws that secure the input/output board shield to the chassis. Loosen the power connector and
press it down the socket.
6. Flip the input/output board shield and remove it from the computer.
7. Disconnect the power-connector cable.
28
