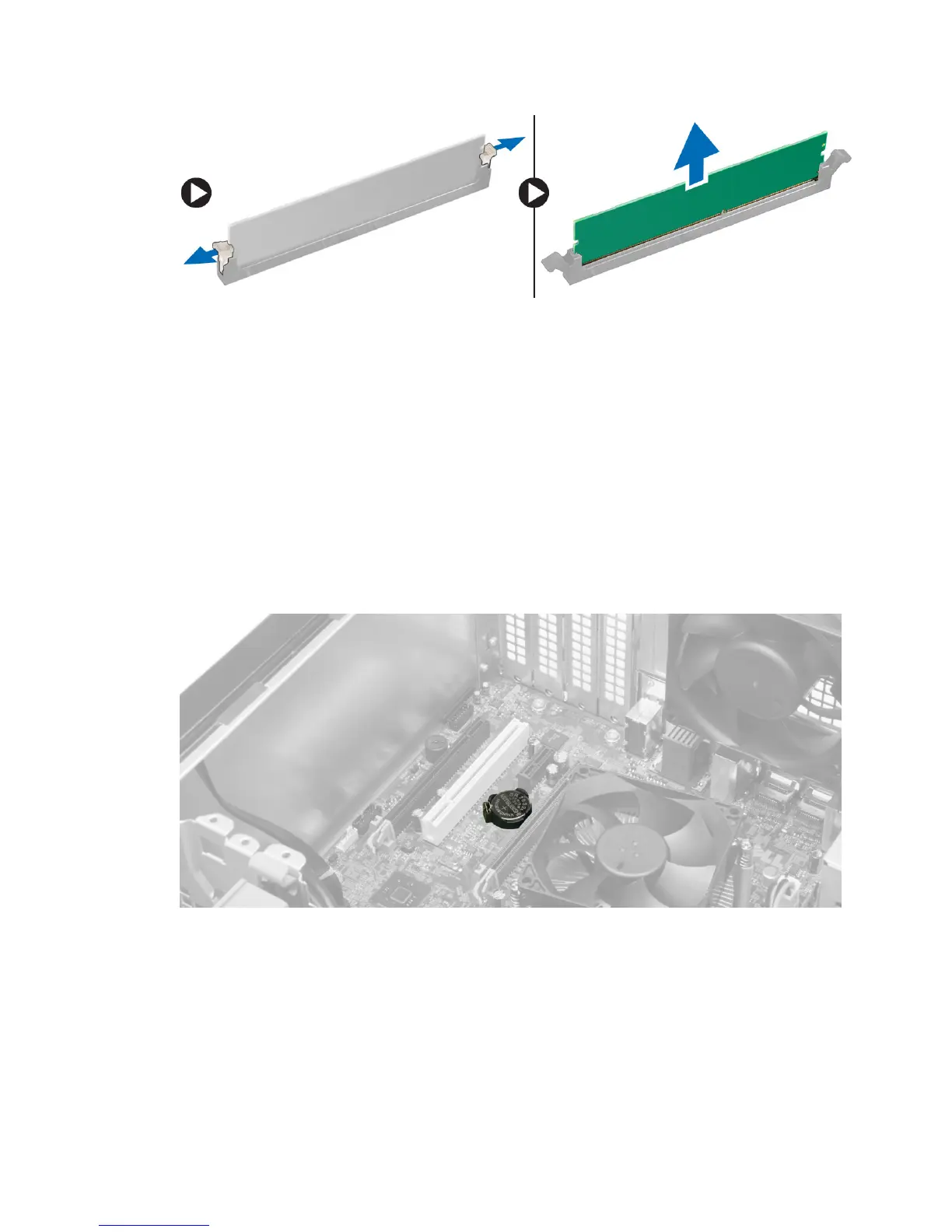

Installing the Memory
1. Align the notch on the memory-card with the tab in the system-board connector.
2. Press down on the memory module until the release tabs spring back to secure them in place.
3. Install the cover.
4. Follow the procedures in
After Working Inside Your Computer
.
Removing the Coin-Cell Battery
1. Follow the procedures in
Before Working Inside Your Computer
.
2. Remove:
a) cover
b) expansion card(s)
3. Locate the coin-cell battery on the system board.
4. Press the release latch away from the battery to allow the battery to pop-up from the socket and lift the coin-cell
battery out of the computer.
12
