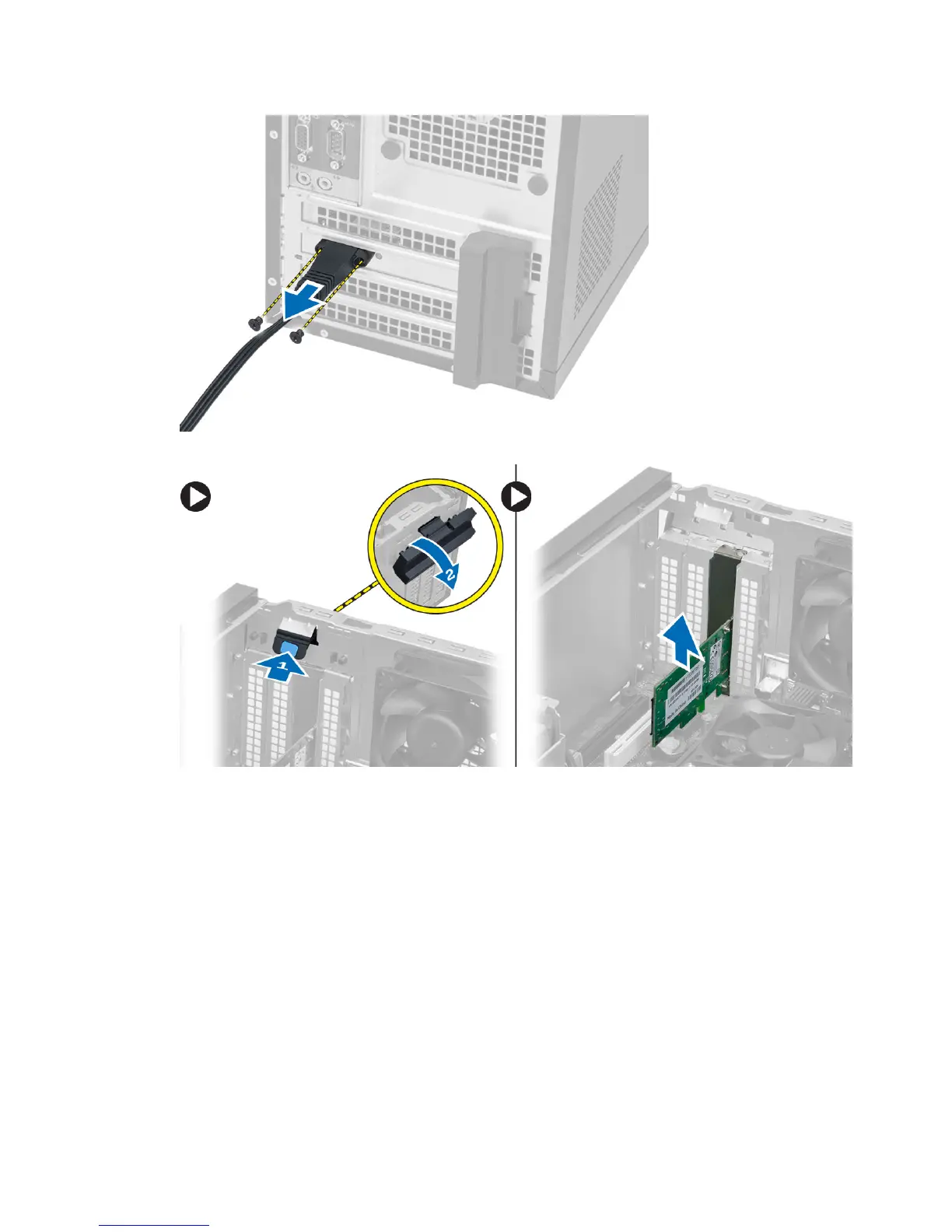

5. Press the blue tab and lift the latch outwards and remove the WLAN card from the connector on the system board.
Installing the Wireless Local Area Network (WLAN) Card
1. Insert the WLAN card into the connector on the system board and press down until it is secured.
2. Affix the latch.
3. Place the antenna puck on the connector and tighten the screws to secure it to the computer.
4. Install the cover.
5. Follow the procedures in
After Working Inside Your Computer
.
Removing the Front Bezel
1. Follow the procedures in
Before Working Inside Your Computer
.
2. Remove the cover.
3. Gently pry the front panel retention clips away from the chassis located at the edge of front panel.
9
