Dell OptiPlex 9020 Mini Tower - Installing the Hard Drive

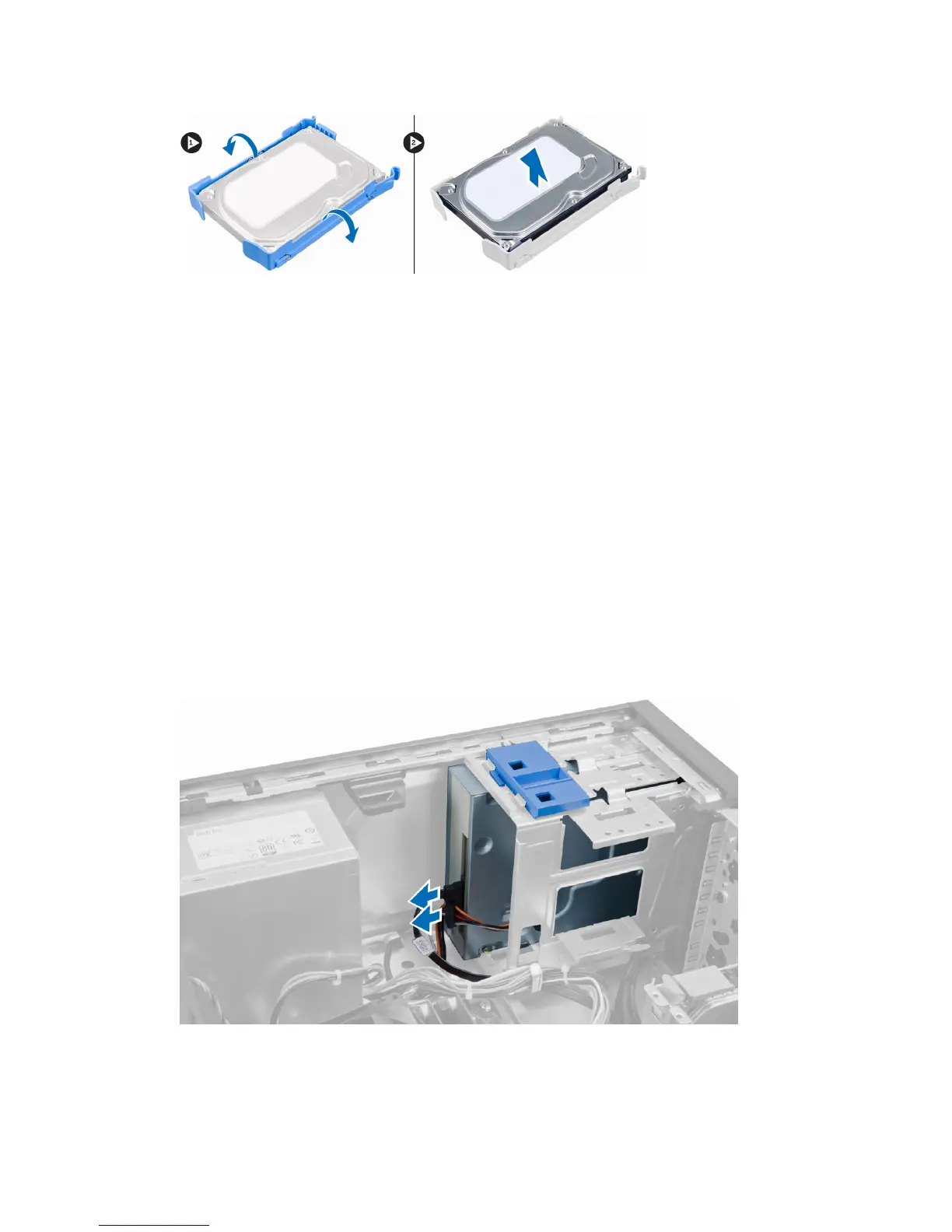

Installing the Hard Drive
1. Insert the hard drive into the hard-drive bracket.
2. Press the securing brackets inward and slide the hard-drive bracket into the bay.
3. Connect the data cable and the power cable to the back of the hard-drive.
4. Install the:
a) front bezel
b) cover
5. Follow the procedures in After Working Inside Your Computer .
Removing the Optical Drive
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove:
a) cover
b) front bezel
3. Disconnect the data cable and the power cable from the back of the optical drive.
4. Slide and hold the optical-drive latch to unlock the optical drive and pull the optical drive out of the computer.
14
