Dell OptiPlex Small Form Factor 7020 - Page 106

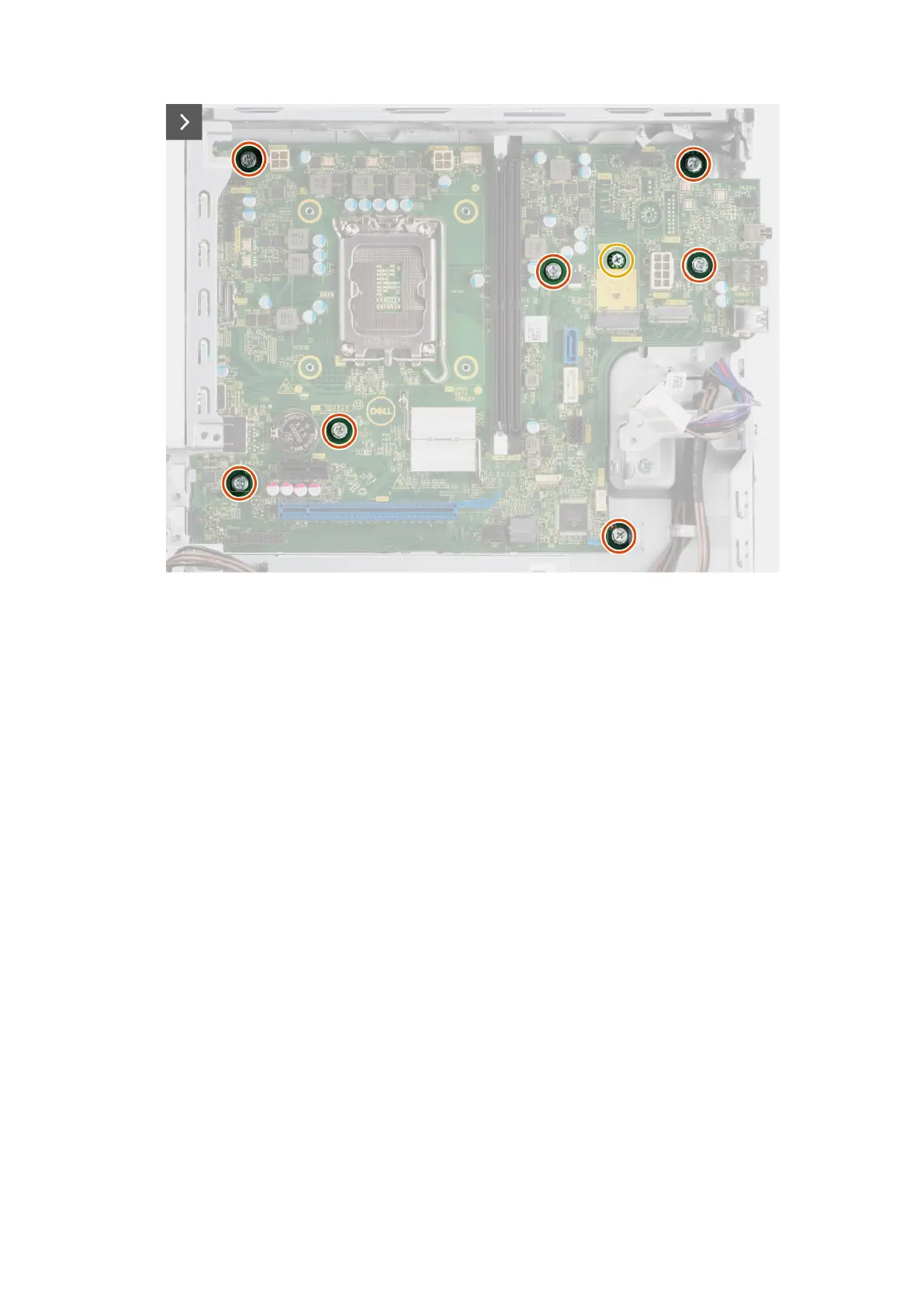

Figure 59. Removing the system board
9. Remove the seven screws (#6-32) that secure the system board to the chassis.
10. Remove the screw mount that secures the system board to the chassis, if applicable.
106
Removing and installing Field Replaceable Units (FRUs)
