Dell P103G002 - Major Components of XPS 13 2-In-1 (9310 2 N1)

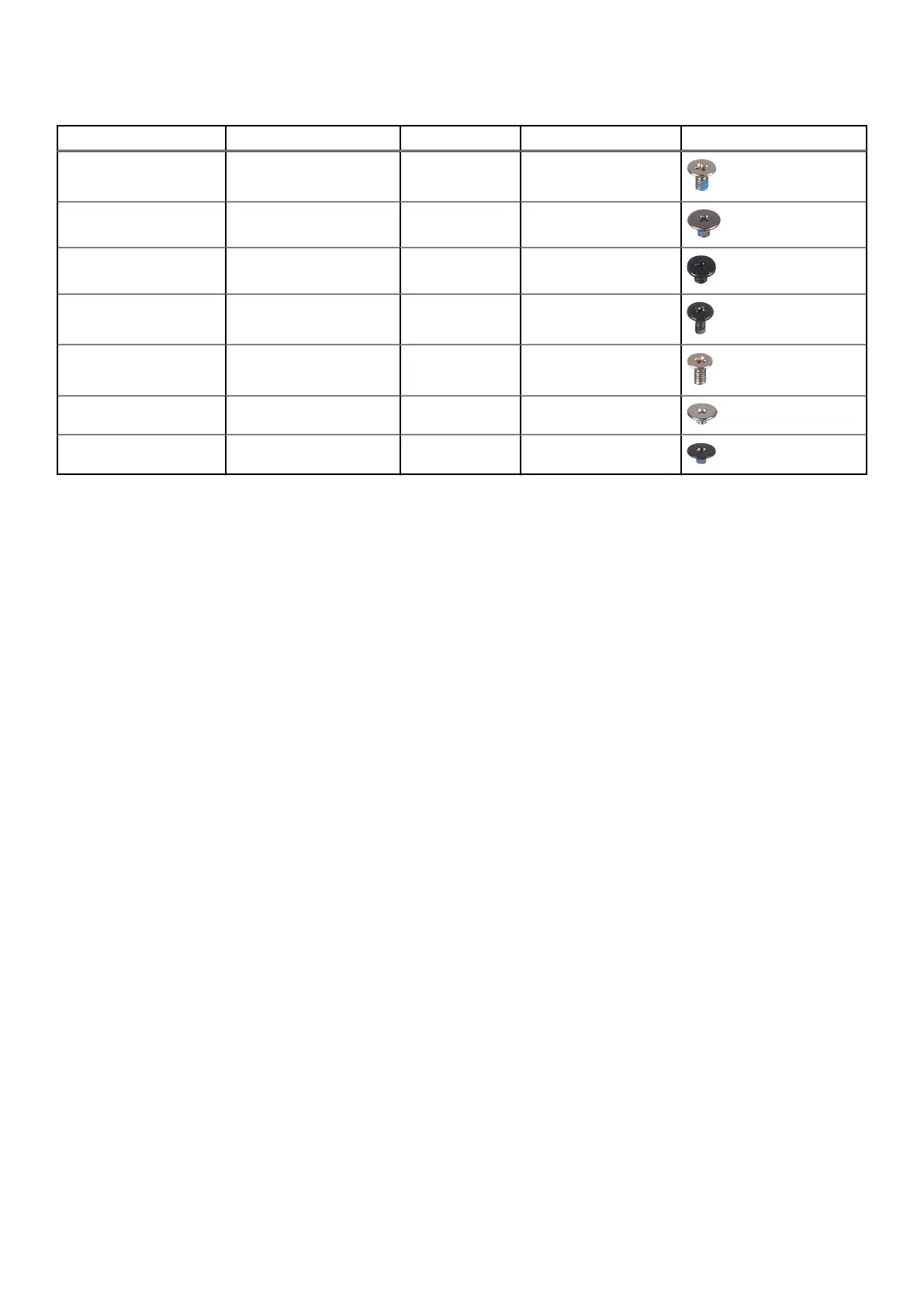

Table 1. Screw list (continued)
Component Secured to Screw type Quantity Screw image
USB Type-C bracket System board M1.6x3 1
USB Type-C bracket System board M1.6x2 1
System board Palm-rest assembly M1.6x2.5 4
System board Palm-rest assembly M1.2x3 3
System board Palm-rest assembly M1.2x4 (captive
screw)
1
Keyboard assembly Palm-rest assembly M1.2x1.4 38
Keyboard assembly Palm-rest assembly M1.2x1.6 10
Major components of XPS 13 2-in-1 (9310 2n1)
The following image shows the major components of XPS 13 2-in-1 (9310 2n1).
