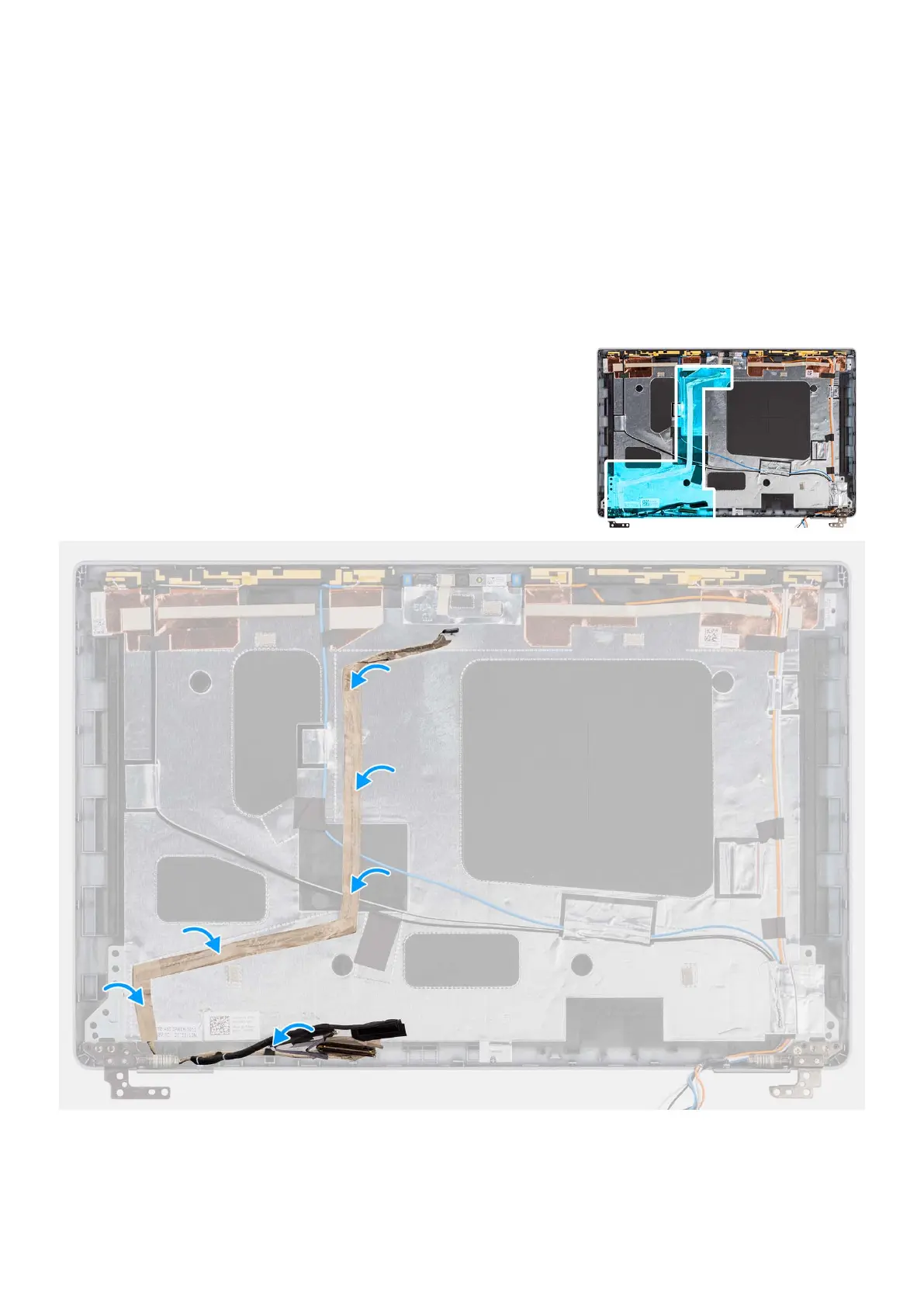

2. Peel the conductive tape and unroute the eDP/display cable to release it from adhesive and lift the eDP/display cable from
the display back cover.
Installing the eDP cable
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image indicates the location of the eDP cable and provide a visual representation of the installation procedure.
Steps
1. Connect the eDP/display cable to the connector on the camera.
110
Removing and installing components
