4. Remove the base cover.
5. Remove the Wireless card.
6. Remove the WWAN card.
7. Remove the display assembly.
8. Remove the display bezel.
9. Remove the display panel.
About this task

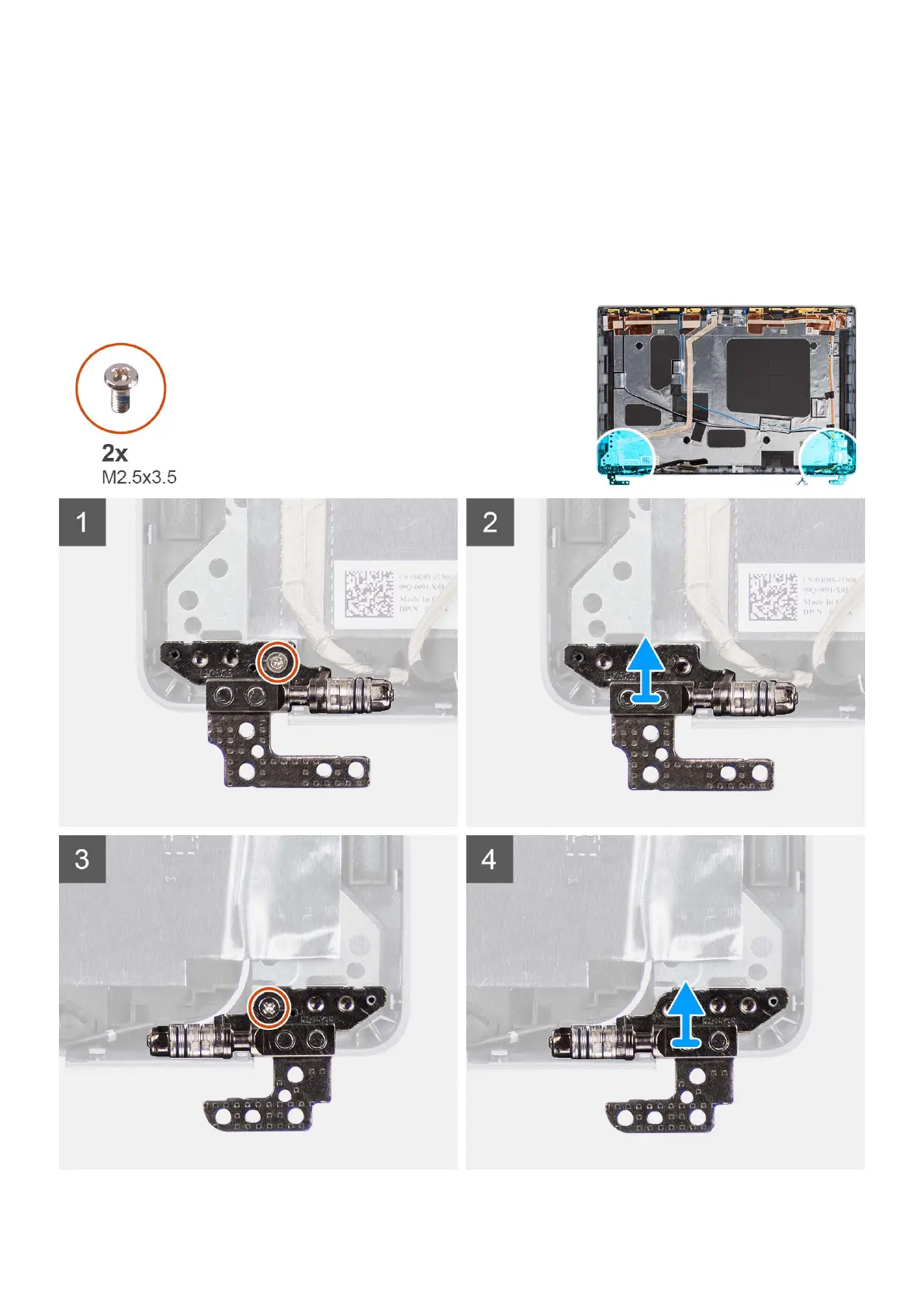

The following images indicate the location of the display hinges and provide a visual representation of the removal procedure.
Removing and installing components 113
