Steps

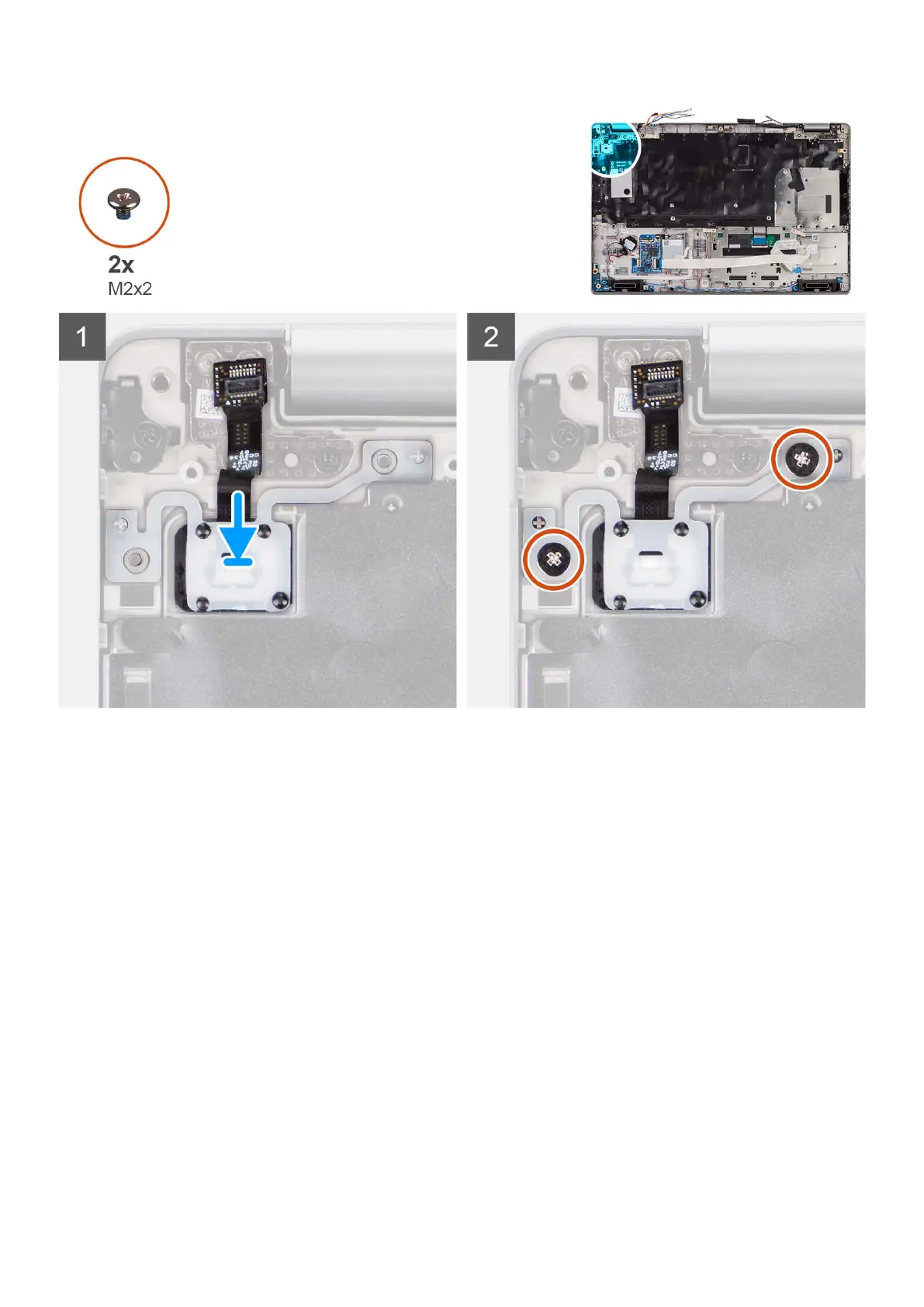

1. Align and place the power-button board on the palm-rest assembly.
2. Replace the two screws (M2x2) that secure the power-button board to the palm-rest assembly.
Next steps
1. Install the system board.
2. Install the assembly inner frame.
3. Install the battery.
4. Install the memory modules.
5. Install the hard drive.
6. Install the WWAN card.
7. Install the wireless card.
8. Install the 2280 solid-state drive or 2230 solid-state drive.
9. Install the base cover.
10. Install the microSD card.
11. Install the SIM card.
12. Follow the procedure in After working inside your computer.
76
Removing and installing components
