Steps

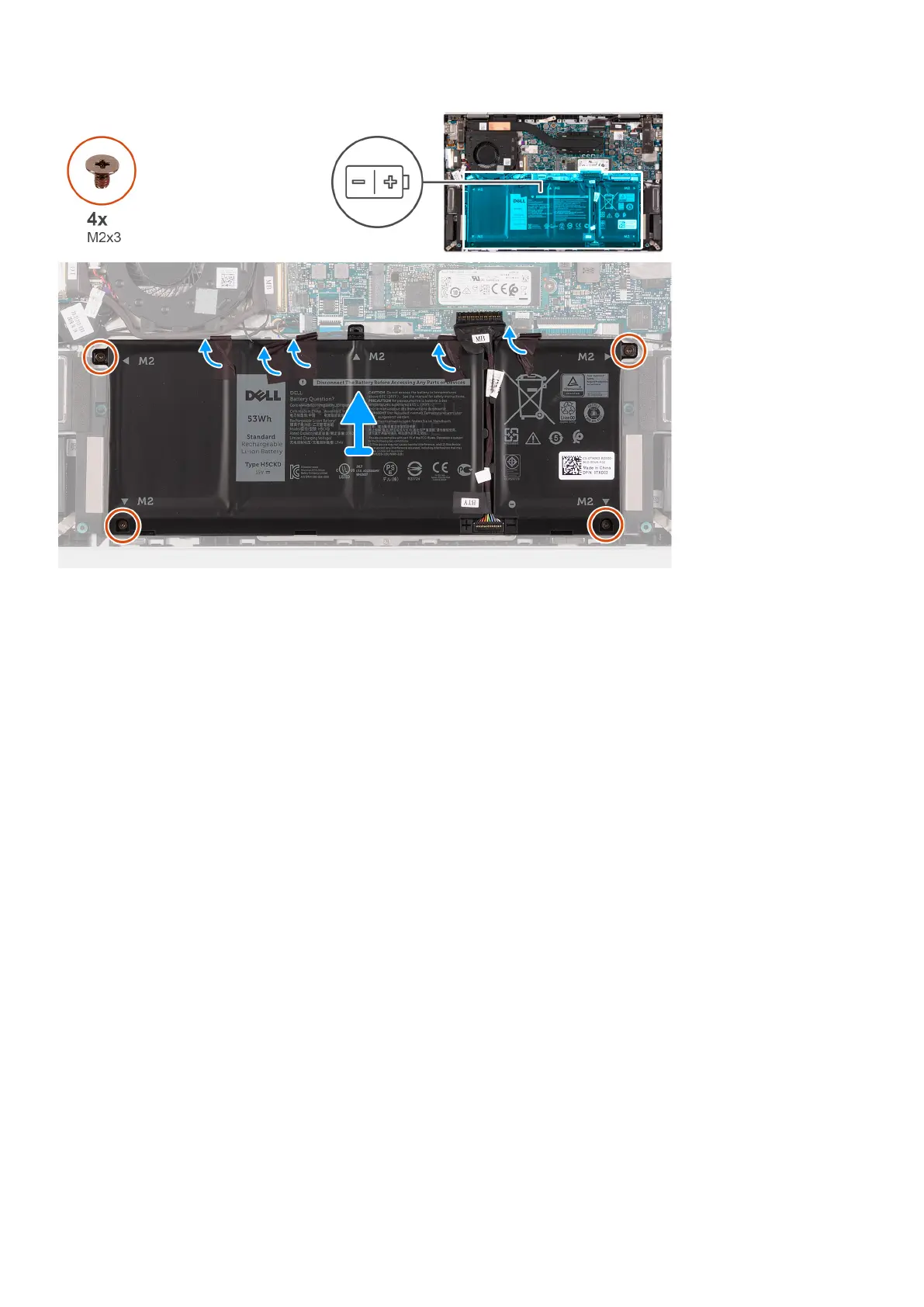

1. Remove the four screws (M2x3) that secure the battery to the palm-rest assembly.
2. Peel off the tapes that secure the battery to the palm-rest assembly.
3. Lift the battery off the palm-rest assembly.
Installing the battery
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
The following image(s) indicate the location of the battery and provides a visual representation of the installation procedure.
16
Removing and installing components
