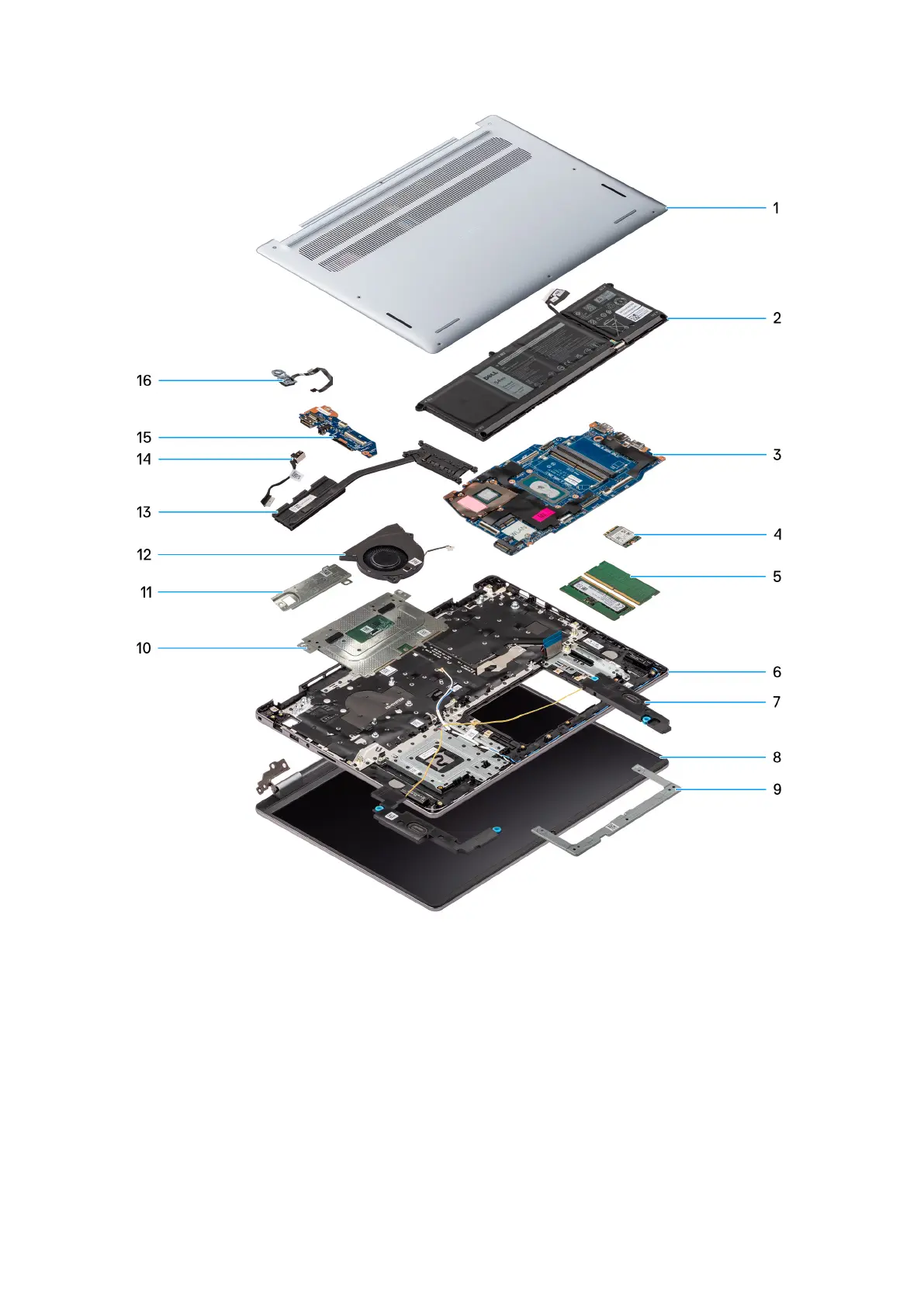

Figure 7. Major components of Inspiron 16 5645
1. Base cover
2. Battery
3. System board
4. Wireless card
5. Memory modules
6. Palm-rest and keyboard assembly
7. Speakers
8. Display assembly
9. Touchpad bracket
10. Touchpad assembly
11. M.2 2230 solid-state drive with thermal plate
