2. Route the speaker cable along the bottom side of the palm-rest and keyboard assembly, over the wireless-antenna cables.
Then secure the speaker cable into the routing guides on the palm-rest and keyboard assembly.
NOTE: The speaker cable must be routed through the routing guides to avoid damaging the speaker cable when
installing the base cover.
3. Connect the speaker cable to its connector (SPK) on the system board.
Next steps
1. Install the base cover.
2. Follow the procedure in After working inside your computer.
Fan
Removing the fan
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
About this task

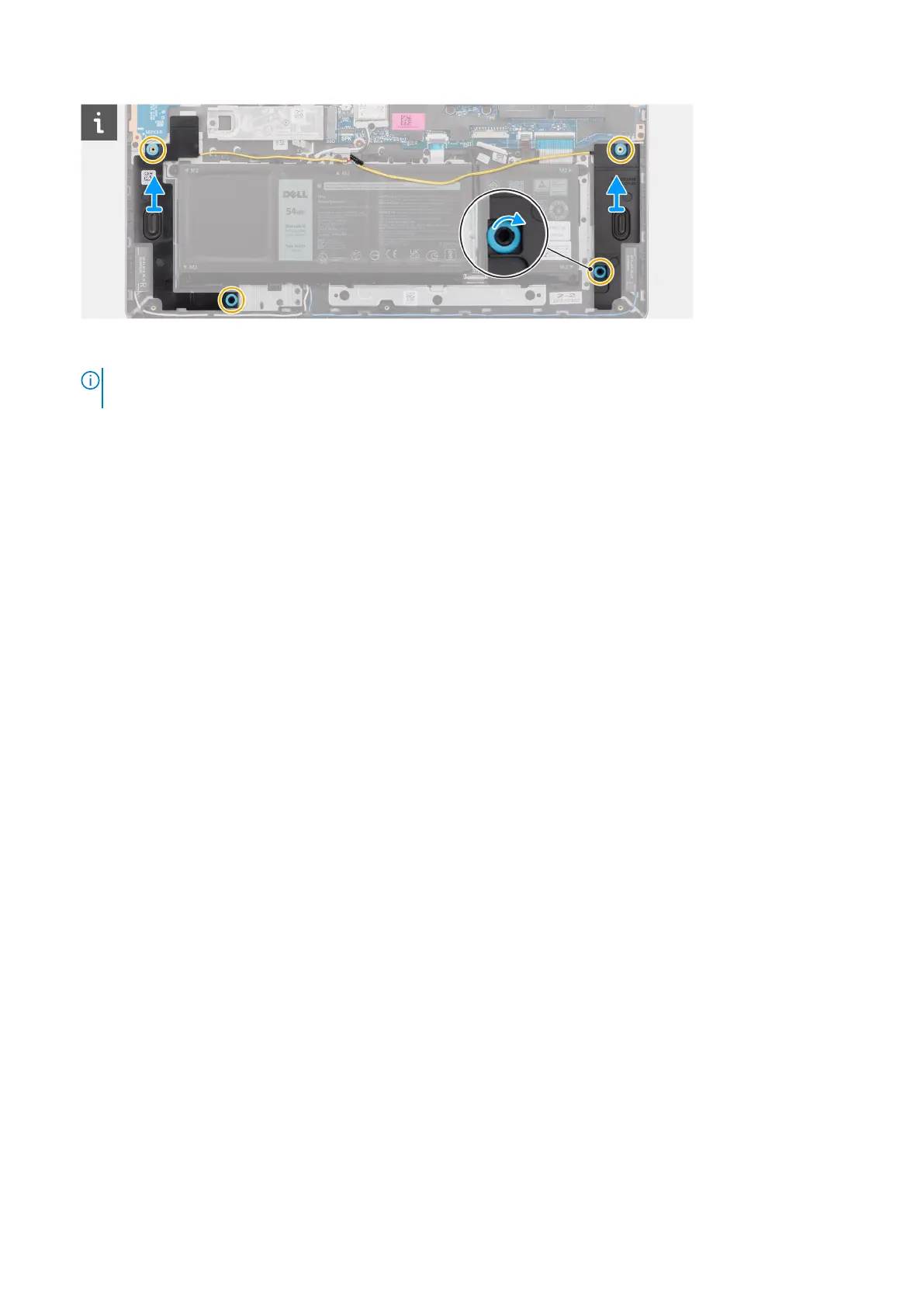

The following image indicates the location of the fan and provides a visual representation of the removal procedure.
