Power button
Removing the power button
CAUTION: The information in this section is intended for authorized service technicians only.
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the I/O board.
About this task
The following image indicates the location of the power button and provides a visual representation of the removal procedure.

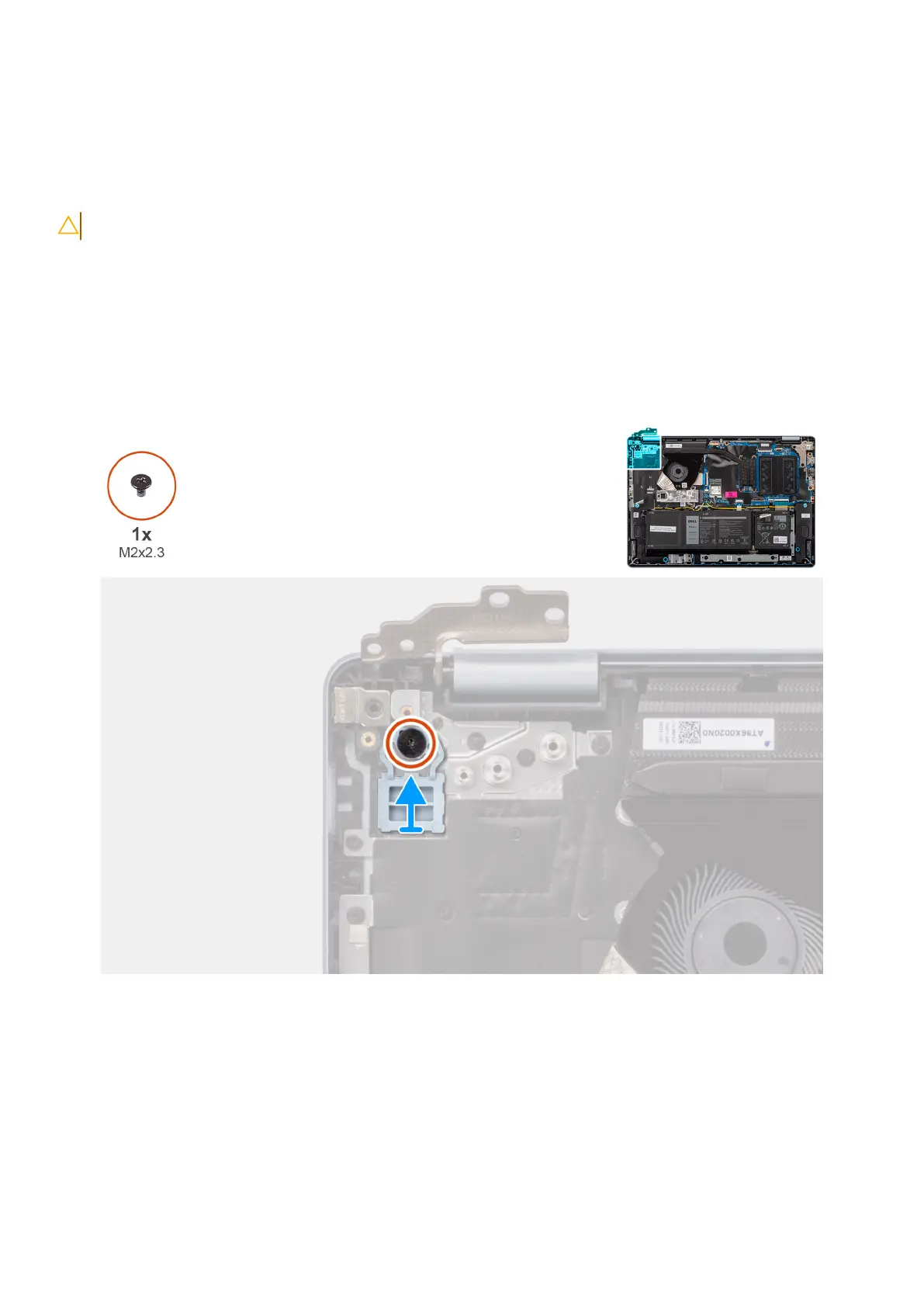

Figure 34. Removing the power button
Steps
1. Remove the screw (M2x2.3) that secures the power button to the palm-rest and keyboard assembly.
2. Lift the power button off the palm-rest and keyboard assembly.
Removing and installing Field Replaceable Units (FRUs)
73
