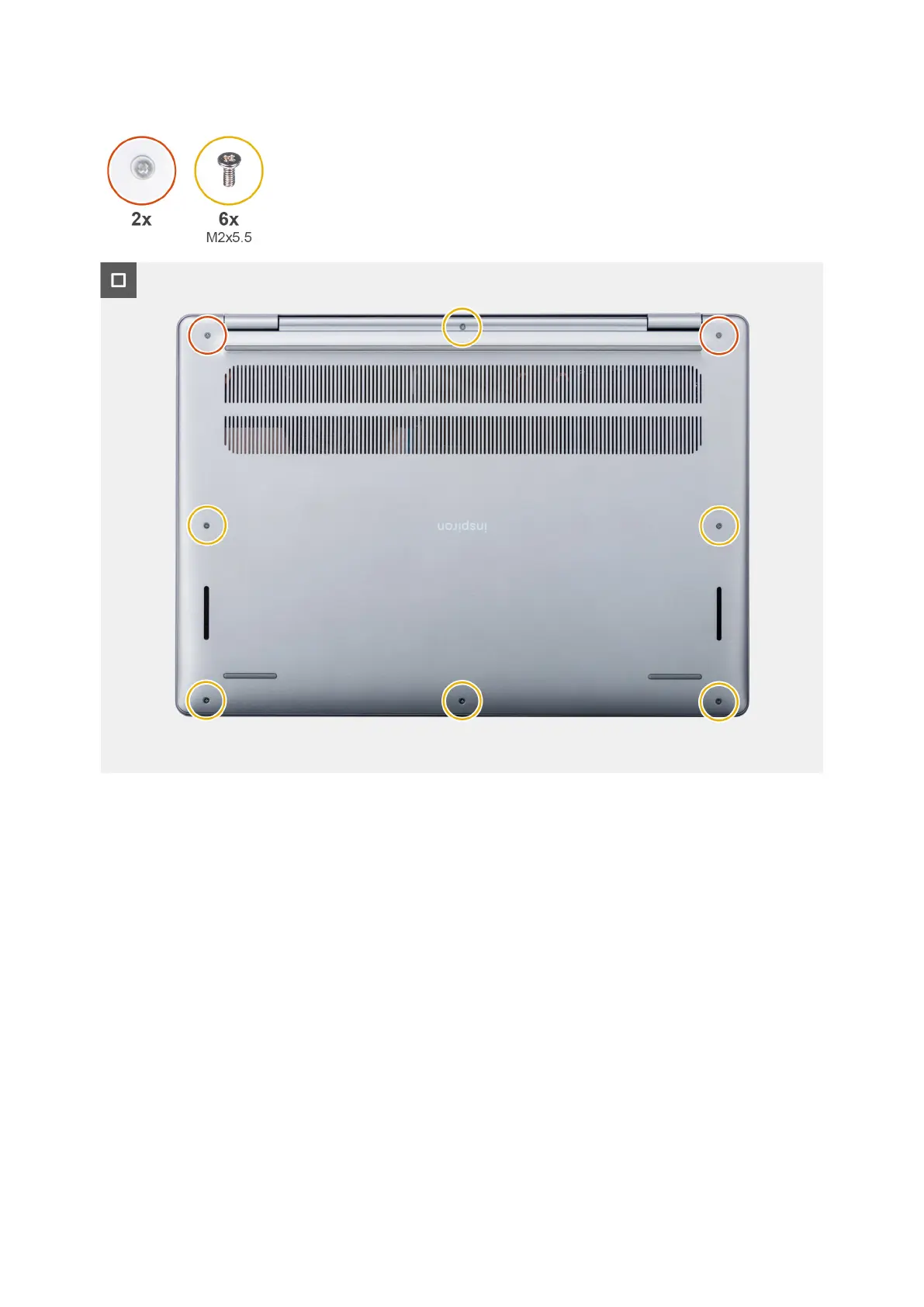

Figure 9. Installing the base cover
Steps
1. Connect the battery cable to its connector (BATT) on the system board.
2. Place the base cover on top of the palm-rest and keyboard assembly.
3. Align the screw holes on the base cover with the screw holes on the palm-rest and keyboard assembly, and snap the base
cover latches into place.
4. Tighten the two captive screws and replace the six screws (M2x5.5) that secure the base cover to the palm-rest and
keyboard assembly.
Next steps
1. Follow the procedure in After working inside your computer.
