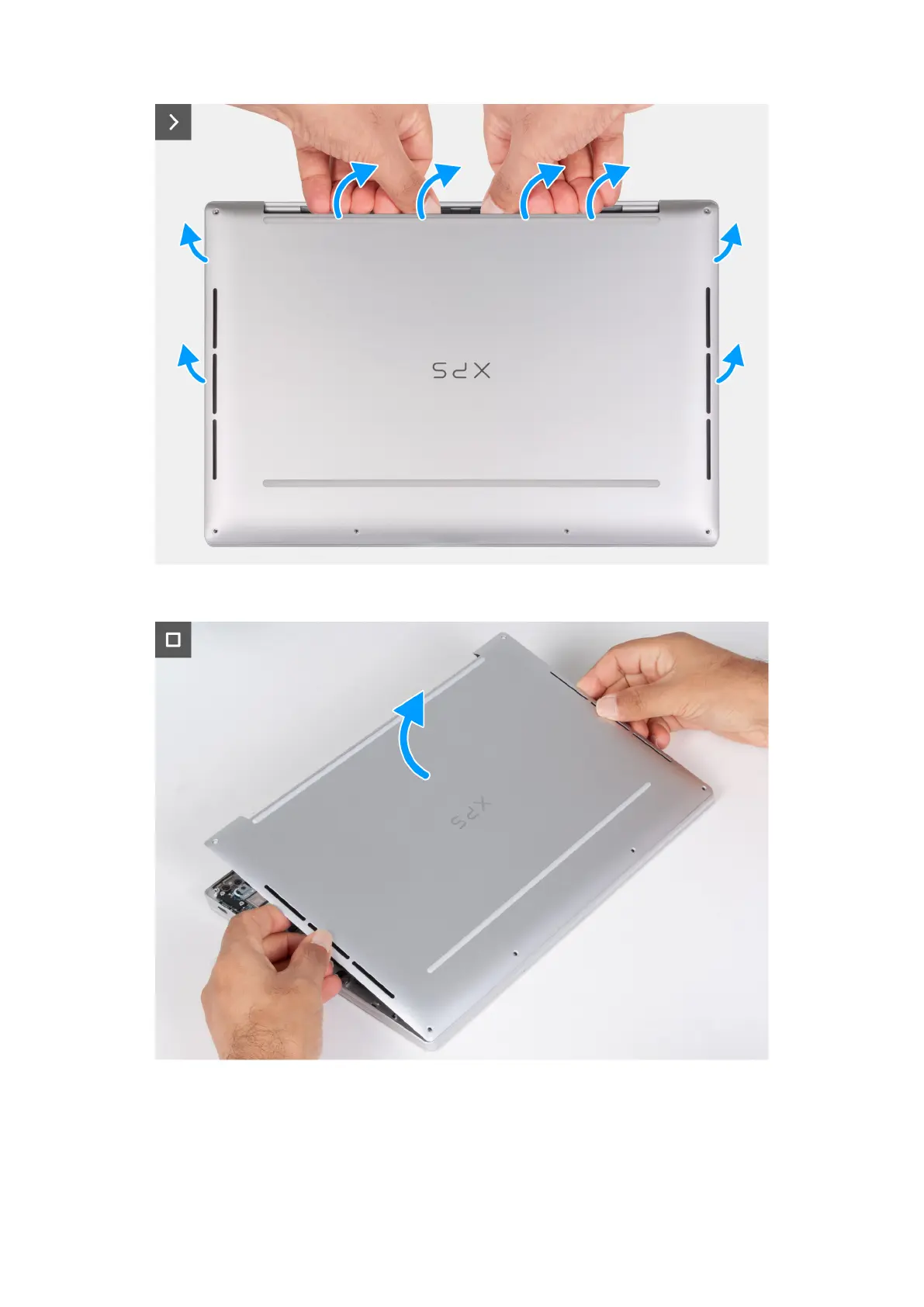

Figure 14. Removing the base cover
Figure 15. Removing the base cover
Steps
1. Remove the six screws (M2x3, T5) that secure the base cover to the palm-rest and keyboard assembly.
34
Removing and installing Field Replaceable Units (FRUs)
