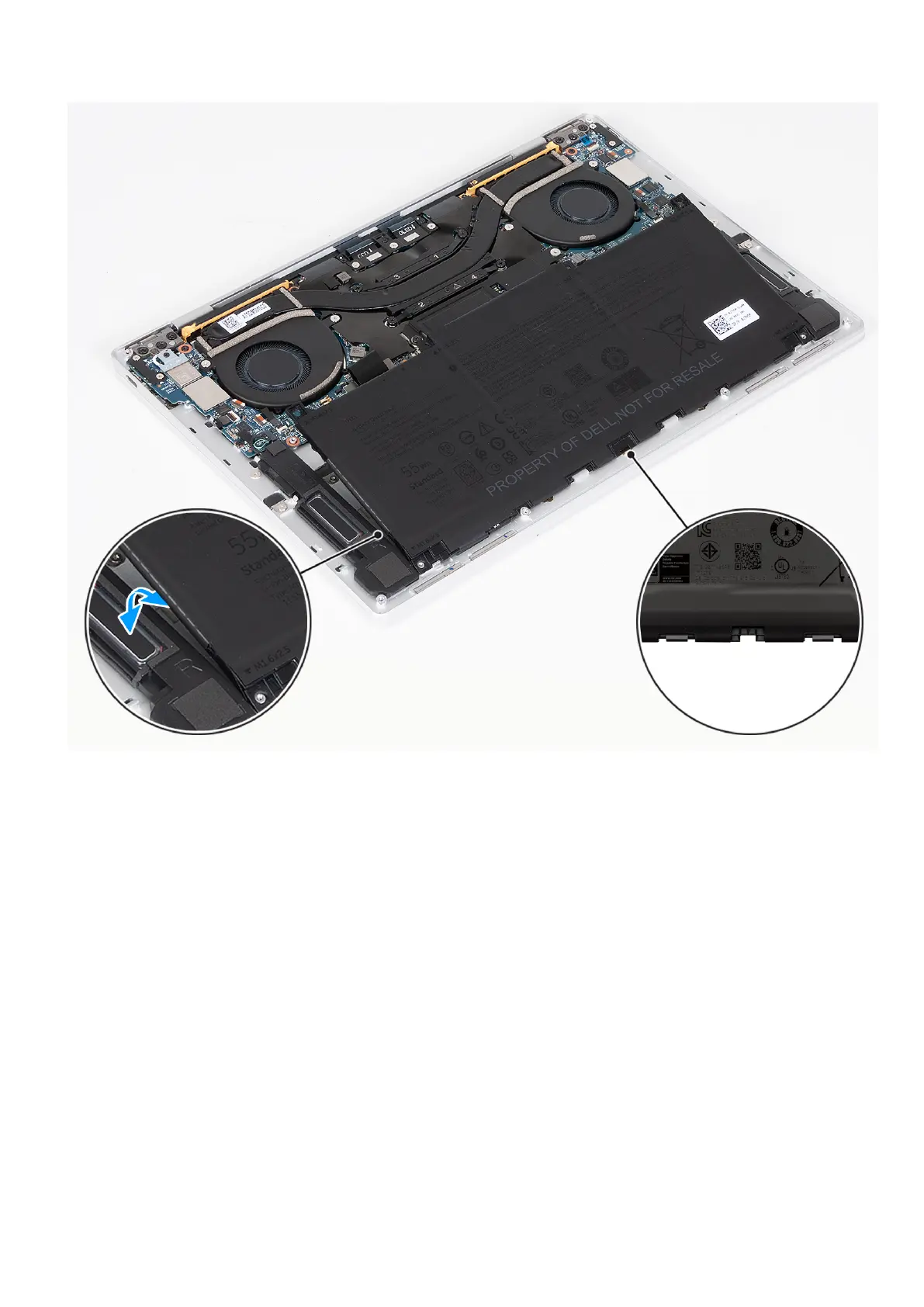

Figure 21. Lift the battery at an angle less than 30 degrees
6. Slide the battery towards the back and lift the battery off the palm-rest and keyboard assembly.
Installing the battery
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
The following images indicate the location of the battery and provide a visual representation of the installation procedure.
40
Removing and installing Field Replaceable Units (FRUs)
