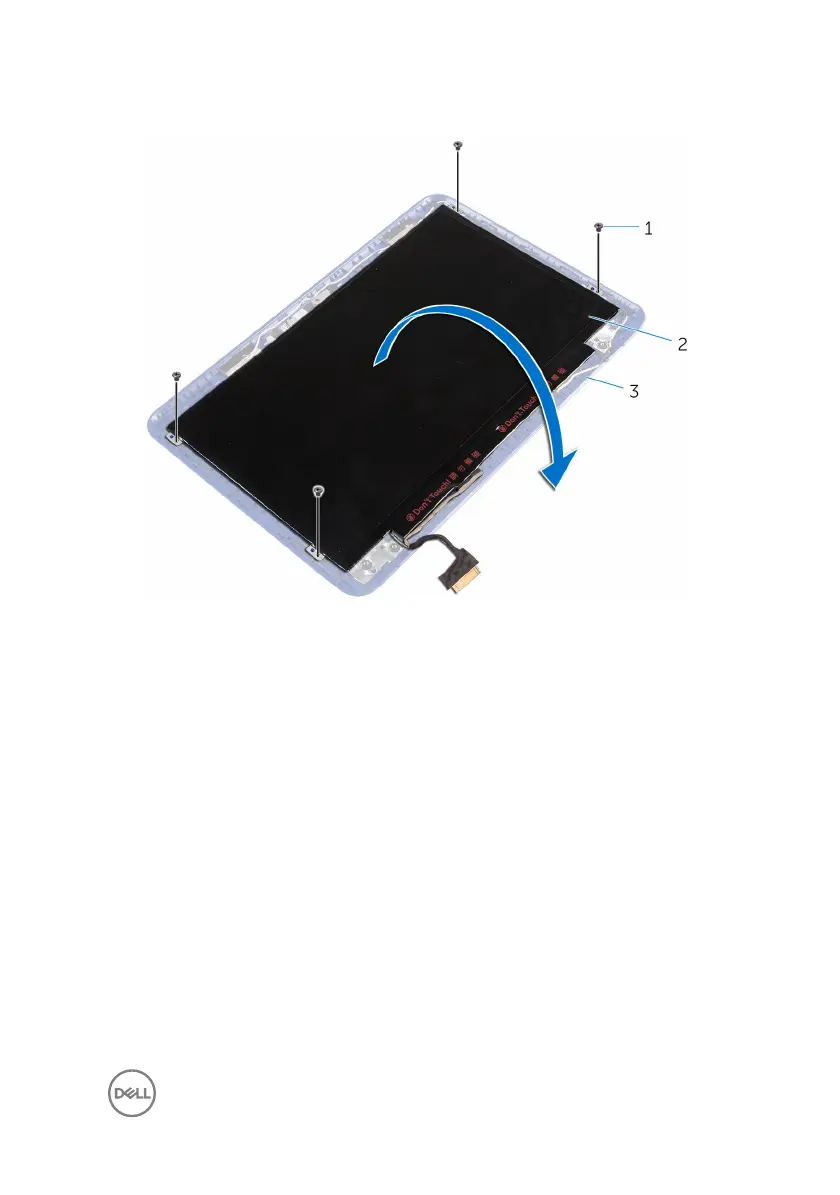

2 Carefully turn the display panel over.
1 screws (4)
2 display panel
3 display back-cover and
antenna assembly
3 Peel off the adhesive tape from the display cable.
4 Open the latch and disconnect the display cable.
77
