Dell P2722HE - Pin Assignments

About your monitor  │  19

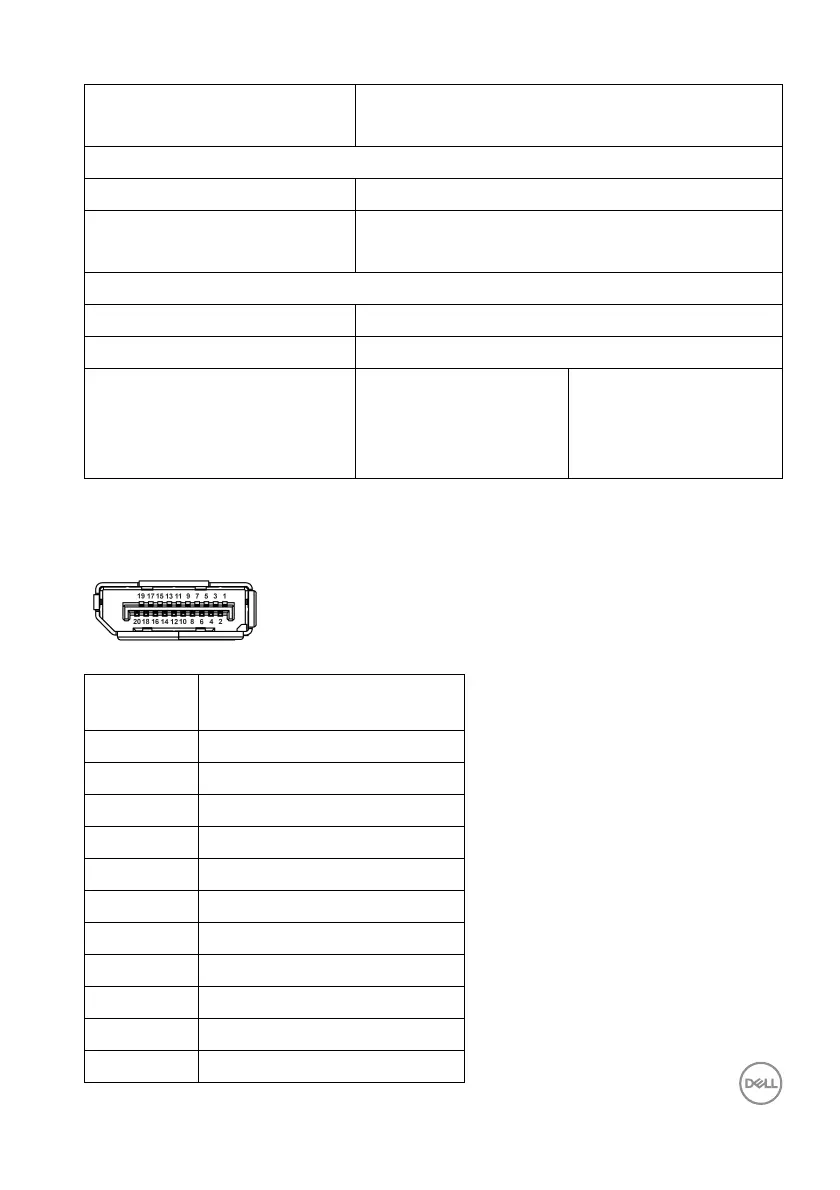

Pin assignments
DisplayPort connector (in)
Non-operating • Storage: -20°C to 60°C (-4°F to 140°F)
• Shipping: -20°C to 60°C (-4°F to 140°F)
Humidity
Operating 10% to 80% (non-condensing)
Non-operating • Storage: 5% to 90% (non-condensing)
• Shipping: 5% to 90% (non-condensing)
Altitude
Operating 5,000 m (16,404 ft) (maximum)
Non-operating 12,192 m (40,000 ft) (maximum)
Thermal dissipation •403.56 BTU/hour
(m
aximum)
•49.59 BTU/hour
(typica
l)
•451.44 BTU/hour
(m
aximum)
•58.48 BTU/hour
(t
ypical)
Pin
number
20-pin side of the
connec
ted signal cable
1 ML3 (n)
2 GND
3 ML3 (p)
4 ML2 (n)
5 GND
6 ML2 (p)
7 ML1 (n)
8 GND
9 ML1 (p)
10 ML0 (n)
11 GND
